P4 Large Led Wall Screen Display Outdoor For High End Restaurant / Hotels
  • P4 Large Led Wall Screen Display Outdoor For High End Restaurant / Hotels
  • P4 Large Led Wall Screen Display Outdoor For High End Restaurant / Hotels
  • P4 Large Led Wall Screen Display Outdoor For High End Restaurant / Hotels
  • P4 Large Led Wall Screen Display Outdoor For High End Restaurant / Hotels

P4 Large Led Wall Screen Display Outdoor For High End Restaurant / Hotels

Brand Name TBC
Model Number E4
Certification CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin China
Product Details
Pixel:
4mm
LED Type:
SMD
Cabinet Size:
960x960mm
Viewing Angle:
160°/160°
Brightness:
6000-7500 Nits
Ingress Rate:
IP65
High Light:

led digital billboards

,

led billboard advertising

Product Description

4K HD Outdoor P4mm Led Media Video Wall for High End Restaurant and Hotels



Application:



4K HD Outdoor P4mm Led Media Video Wall are the most frequent used outdoor led video wall product in the high end restaurant, hotels and stores, annual sales over 20,000 sqm. High definition, high clarify and contrast ratio making it the perfect choice for high profile outdoor advertising.



Features and Advantages:



1. The SMD (3-in-1) LED package provides wider viewing angles and extremely close viewing distances.
2. Advanced video processing produces crystal-clear, detailed images with smooth motion reproductions.
3.High brightness,waterproof IP65, dust-proof, UV-proof, noise-free, endure high-temperature, corrosion resisting. Work stable in 365 days 24 hours at any weather.
4.Low power consumption, environmental protection and energy saving.
5.Image feeds delivered in both standard and high-definition formats.
6.Full-depth image calibration in the factory and in the field provides for a uniform display picture.
7.Integrates seamlessly with a variety of other video products.



Parameters



Brightness nits 5500
Color temperature deg.k 3200 ~ 9300
Viewing angle - Horizontal deg. 160(+80/-80)
Viewing angle - Vertical deg. 160(+80/-80)
Cabinet weight kg 61
Cabinet width mm 1024
Cabinet height mm 1024
Cabinet depth mm 150
Cabinet area sq. m. 1.05
Cabinet material   Cold Steel
Aspect ratio   1:1
Ingress protection (Front/Rear) IP IP65/IP54
Operating temperature range deg. C - 20 to 50
Operating humidity range HR 10% to 90%
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 4
Pixel matrix per cabinet   256x256
Pixels per cabinet   65536
Lines per meter   250
Pixels per sq. meter   62500
LEDs per sq. meter   62500
Recommended minimum viewing distance m 4
Colours   281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 1920
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 970/330
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity   <5%
Blind spot rate   <0.0001
Earth leakage current mA <2
Red wavelength nm 623
Green wavelength nm 525
Blue wavelength nm 470
Panel input format (with video processor)   VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection   CAT6 cable/Fiber
Operating system   Windows(XP/Vista/7/8/10)
Control distance   Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.
Pictures:

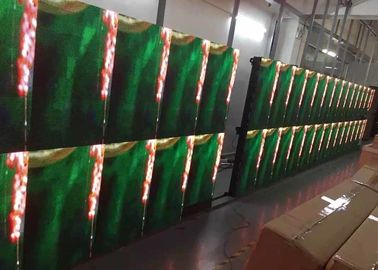

P4 Large Led Wall Screen Display Outdoor For High End Restaurant / Hotels 0
