20mm Advertising Transparent Led Display Grille Led Screen 960 X 640mm

Place of Origin China
Brand Name TBC
Certification CE-EMC, CE-LVD, RoHS, ETL, FCC
Model Number X20
Product Details
Pixel:
20mm
LED Type:
SMD
Cabinet Size:
960x640mm
Viewing Angle:
160°/160°
Pixels:
2500 Dots/sqm
Transparency:
80%
High Light:

led transparent screen

,

see through led display

Product Description

20mm Transparent Mesh Led Display Grille Led Screen 80% Transparency



Application:



20mm Transparent Mesh Led Display is an innovative led screen product with extremely high transparency, achieving a brilliant visual effect. It can be directly installed on glass walls against the building for advertising and decoration, as well as rental application for stage. It's thin and lightweight, make it the perfect choice for creative designing company to use on large-scale applications.



Features and Advantages:



1. High transparency 80%

Up to 80% transparency rate can keep the internal natural lighting and viewing, the SMD are almost invisible from distance.

2. Thin and light weight

PCB board is only 10mm thickness, 14kg/㎡ light weight allow small space for the installation possible, and minimizes the negative impact on the appearance of the buildings

3. Fast installation

Fast lock systems ensure fast installation, saving labor cost

4. High brightness and energy saving

6000nits brightness ensure the perfect visual performance even under direct sunlight, without any cooling system, saves lots of power

5. Easy maintenance

Repairing single SMD without taking of single module or entire panel

6. Stable and reliable

Stability is very import for this product, under the patent of inlaying SMD into PCB, ensure the stability better than other similar products in the market.

7. Wide applications

Any building with glass wall, for example, bank, shopping mall, theatres, chain stores, hotels, and landmarks etc.



Parameters



Brightness nits 5500
Color temperature deg.k 3200 ~ 9300
Viewing angle - Horizontal deg. 160(+80/-80)
Viewing angle - Vertical deg. 160(+80/-80)
Cabinet weight kg 8
Cabinet width mm 960
Cabinet height mm 640
Cabinet depth mm 98
Cabinet area sq. m. 0.61
Cabinet material   Cold Steel
Aspect ratio   3:2
Ingress protection (Front/Rear) IP IP65/IP54
Operating temperature range deg. C - 20 to 50
Operating humidity range HR 10% to 90%
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 20
Pixel matrix per cabinet   48x32
Pixels per cabinet   1536
Lines per meter   50
Pixels per sq. meter   2500
LEDs per sq. meter   2500
Recommended minimum viewing distance m 20
Colours   281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 1920
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 650/220
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity   <5%
Blind spot rate   <0.0001
Earth leakage current mA <2
Red wavelength nm 623
Green wavelength nm 525
Blue wavelength nm 470
Panel input format (with video processor)   VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection   CAT6 cable/Fiber
Operating system   Windows(XP/Vista/7/8/10)
Control distance   Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.



Pictures:

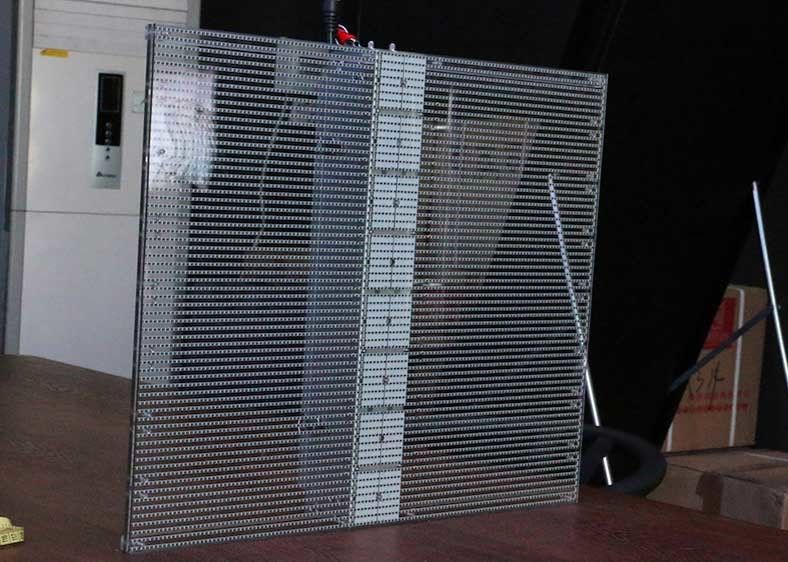

20mm Advertising Transparent  Led Display Grille Led Screen 960 X 640mm 0
