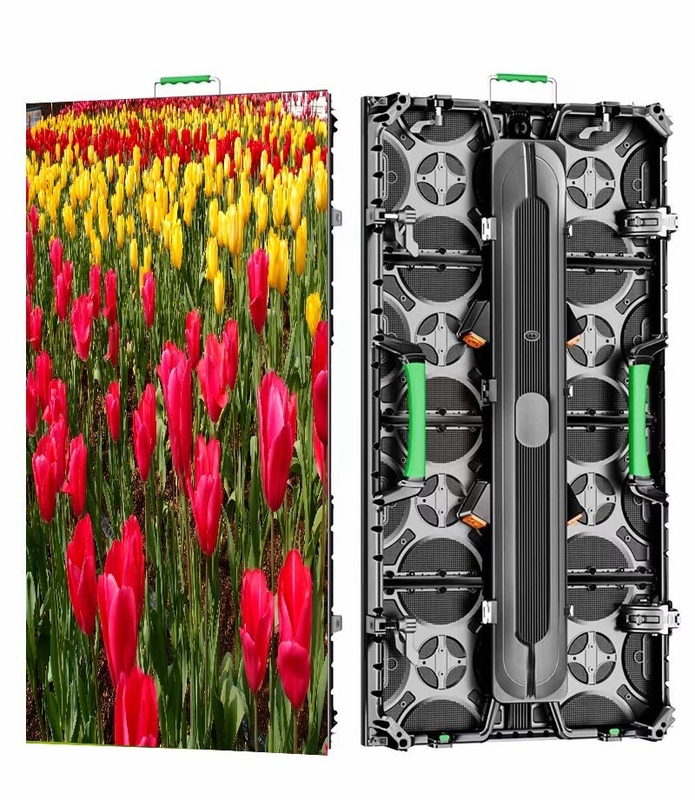

P2.6mm 500x1000mm Indoor Rental LED Screen CE, ROHS, FCC Certified With 3840Hz Flicker Free Refresh Rate
Advantages Of Indoor Rental LED Screen
Rental led screen is the most widely used electric screen at present, and its installation environment is not limited, and it can be used both indoors and outdoors. Especially in recent years, with the development of technologies such as COB packaging, more spacing specifications have been introduced, which has greatly improved the resolution of rental LED screen. It directly improves the clarity of the display, so there are more and more. Secondly, its splicing ruler can be defined, and the splicing gap after splicing has become the main screen product for stage and conference occasions.
Advantages:
1. Rental LED screen is spliced by module or box-type unit board. Because its lamp beads are welded on the PCB board, there is no splicing when it is spliced. In this way, the image is more complete when it is displayed in full screen, which is especially suitable for the background screen of the stage. Advantages:
2. Screen brightness. The brightness of the led screen is much better than that of the conventional LCD screen, and the brightness parameters can be adjusted, which is why it can display normally under the condition of direct sunlight outdoors. In order to ensure that users can watch the screen normally, it is necessary to increase the brightness of the electric screen display screen.
Quick detail Of Indoor Rental LED Screen
1, Pixel Pitch: 2.6mm. 2.9mm, 3.91mm
2, Quality and High Contrast SMD LEDs, Wide viewing angle: 140°/ 140°.
3, Greyscale: 16bits with NOVA Star MRV328
4, Cabinet size: 500x500mm Die Cast Aluminum
5, Recommended Viewing Distance: 2-4m.
6, Cabinet Material: Die Cast Aluminum Cabinet, 7.5kg Weight
7, Refresh Rate: 1920-3840Hz
8, Ingress Rate: IP43 Indoor
9,Quality Certificate:CE, RoHS,FCC, ETL
10,Brightness:>1000cd/sqm
11, Curve Installation: Yes, Concave and Convex Available
12, Corner Protector: Available
Specification Of Indoor Rental LED Screen
| XT1.95 | XT 2.6 | XT 2.9 | XT 3.91 | |
| Pixel Pitch | 1.953mm | 2.604mm | 2.97mm | 3.91mm |
| Pixel Configuration | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Density | 262,144 pixels/m2 | 147,456 pixels/m2 | 112,986 pixels/m2 | 65,536 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 128x128 | 96 x 96 | 84 x 84 | 64 x 64 |
| Cabinet Resolution | 256x256 | 192 x 192 | 168 x 168 | 128 x 128 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840 Hz | >3,840 -7680Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front | Front |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/32 Scan | 1/32 Scan | 1/21 Scan | 1/16 Scan |
Description Of Indoor Rental LED Screen
1. Integrated compact design, cableless design, fast replacement of power box.
2. With fast lock design, 500x500mm and 500x1000mm cabinet can be easily spclied up and down, and mixed use.
3. Reinforced connection design, all connection part is strong and reliable for all kinds of application.
4. High precision, with high end CNC machine, the allowance is as small as within 0.1mm, which keeps the screen in perfect flat surface and create smooth image performance.
5. Packing, with strong and high end flight cases, 8 in 1 or 6 in 1 as customer demand.
Our Services
1. 15 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. CE, ROHS, FCC, ETL, TUV certified supplier
FAQ
Q1. How does the semi auto corner protector work?
A: Gently push the button, the corner protector will release and cover the corner area.
A: Either stacking on ground or haning is supported.
A: Low MOQ, modules or complete screen order are all welcome.
A: Air freight, sea and train transport according to different region.
A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.
A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.
A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping
