| Place of Origin | China |
| Brand Name | TBC LED |
| Certification | FCC, CE, ROHS |
| Model Number | P20 |
Project requirements:
1. Installation range: within the red frame of the building; installation height: from 3m;
2. Installation environment: indoor
3. Effect requirements:
a. Visible during the day and night, viewed from outside 10m
b. The video is required to be clearly visible and consistent in brightness
as the picture shows:
The entire glass curtain wall is divided into 6 pieces:
2 pieces of glass with length 3420mm*height 3000mm
2 pieces of glass with length 3400mm*height 3000mm
2 pieces of glass with length 1820mm*height 3000mm.
Customize the film screen display module according to the size of the glass. The specific display module is shown in the figure
According to the above requirements, the best case design is as follows:
1. Spacing: P10 film screen.
2. Installation method: fixed installation of indoor glass keel
3. The whole screen size: 8740*6000mm
4. Full screen resolution: 874*600
5. Brightness: 5000cd/square meter
6. Power consumption: maximum 600W/㎡, average 200W/㎡
7. Viewing distance: 10-150m

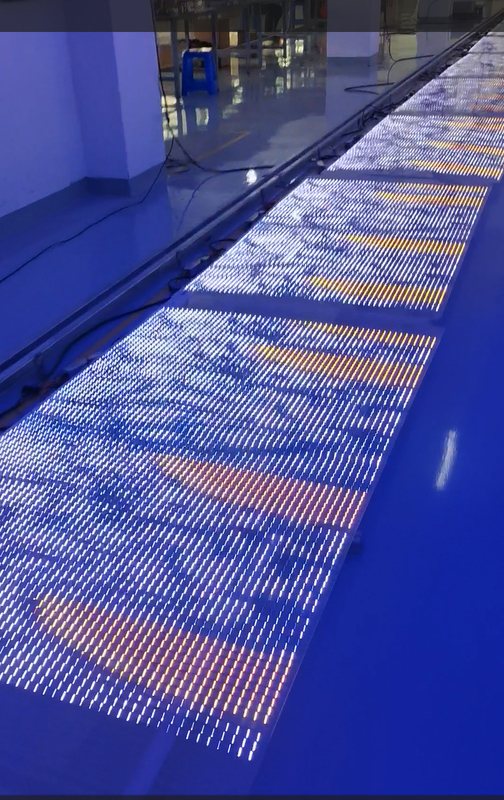

LED film screen - product parameters
|
Project |
Unit |
parameter |
parameter |
parameter |
parameter |
|
Product No |
|
DM4/8 |
DM6.5 |
D10 |
D20 |
|
light source model |
SMD |
2121 |
2121 |
2121 |
2121 |
|
Density |
dot/m2 |
31250 |
23668 |
10000 |
2500 |
|
Module Size |
mm |
960(H)X256(W) |
962(H)X208(W) |
960(H)X320(W) |
960(H)X320(W) |
|
Screen compositon |
High transparency,high temperature resistance,flame retardantPC |
||||
|
Weight |
kg/m2 |
6 |
6 |
6 |
6 |
|
Permeability |
|
|
|
|
|
|
Brightness |
cd/m2 |
≥4000 |
≥5000 |
≥5000 |
≥3000 |
|
Refresh |
Hz |
|
|
|
|
|
Scan |
|
stati |
stati |
stati |
stati |
|
Maximum power |
W/m2 |
|
|
|
|
|
average power |
W/m2 |
300 |
300 |
200 |
200 |
|
installation method |
|
|
|
|
|
|
maintenance method |
Pre/Post Maintenance |
||||
|
Brightness Level |
|
256 |
|||
| Operating Voltage | DC5V | ||||
|
gray scale |
bit |
12- 16 |
|||
|
IP |
IP |
IP30 |
|||
|
Viewing angle |
Degree |
Horizontal≥150度, Vertical ≥ 150 |
|||
|
Input voltage |
|
degreesAC95V~240V |
|||
|
Operating temperature |
°C |
-20~65 |
|||
|
Working humidity |
|
10% ~90RH |
|||
|
service life |
1 00000 hours |
||||
