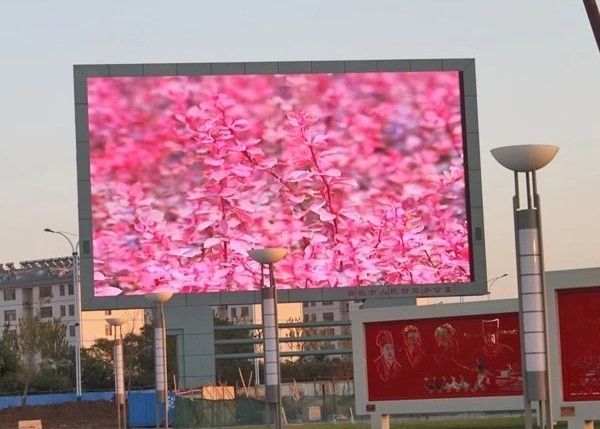

P16 Huge Led Screen , Led Digital Billboards With Fast Viewing Distance
  • P16 Huge Led Screen , Led Digital Billboards With Fast Viewing Distance
  • P16 Huge Led Screen , Led Digital Billboards With Fast Viewing Distance
  • P16 Huge Led Screen , Led Digital Billboards With Fast Viewing Distance
  • P16 Huge Led Screen , Led Digital Billboards With Fast Viewing Distance

P16 Huge Led Screen , Led Digital Billboards With Fast Viewing Distance

Place of Origin China
Brand Name TBC
Certification CE-EMC, CE-LVD, RoHS, ETL, FCC
Model Number E16
Product Details
Pixel:
16mm
LEDs:
SMD 3in1
Scan:
Static
Digital Process:
16 Bits
Cabinet Size:
1024mmx1024mm
Cabinet Pixel:
64x64
High Light:

led digital billboards

,

led billboard advertising

Product Description

Giant Outdoor LED Digital Billboard P16mm Fast Viewing Distance



Quick Details:

1, Pixel Pitch: 16mm.

2, Real SMD, Wide viewing angle: 160°/ 160°.

3, IP rating: front: IP65/ rear: IP54.

4, Meanwell power supply.

5, Power input: AC110V/220V, 50/60Hz.

5, Recommended Minimum Viewing Distance: 16m.



Description:

TBC Advertising led displays include permanent installation outdoor led billboard/ indoor led video wall, the pixel various from 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 6.77mm, 8mm, 10mm, 12mm, 16mm.

Within these pixels, outdoor 4mm, 5mm, 10mm and indoor 3mm, 4mm are the most hot-selling and highest cost-effective types.



Features and Advantages:
1, IP65 weathing rating,
waterproof and dust resistance.
2, Good heat dissipation with fans and using meanwell power supply, long lifespan.

3, High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
4, SMD LEDs ensure large viewing angle, up to 160° horizontally and 160° vertically.
5, Screen size can be customized.

6, Synchronous or asynchronous control, handle easily.



Parameters:
Parameter Unit Value
Brightness nits 6000
Color temperature deg.k 3200 ~ 9300
Viewing angle - Horizontal deg. 160(+80/-80)
Viewing angle - Vertical deg. 160(+80/-80)
Cabinet weight kg 61
Cabinet width mm 1024
Cabinet height mm 1024
Cabinet depth mm 150
Cabinet area sq. m. 1.05
Cabinet material   Cold Steel
Aspect ratio   1:1
Ingress protection (Front/Rear) IP IP65/IP54
Operating temperature range deg. C - 20 to 50
Operating humidity range HR 10% to 90%
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 16
Pixel matrix per cabinet   64x64
Pixels per cabinet   4096
Lines per meter   62
Pixels per sq. meter   3906
LEDs per sq. meter   3906
Recommended minimum viewing distance m 16
Colours   281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 1920
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 1000/350
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity   <5%
Blind spot rate   <0.0001
Earth leakage current mA <2
Red wavelength nm 623
Green wavelength nm 525
Blue wavelength nm 470
Panel input format (with video processor)   VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection   CAT6 cable/Fiber
Operating system   Windows(XP/Vista/7/8/10)
Control distance   Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.



Application:
TBC fixed installation advertising led boards are widely used in airport, station, shopping mall, public places, high building roof, advertising media and so on.
