Transparent LED Display
>
|
| Place of Origin | China |
| Brand Name | TBC |
| Certification | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number | X58 |

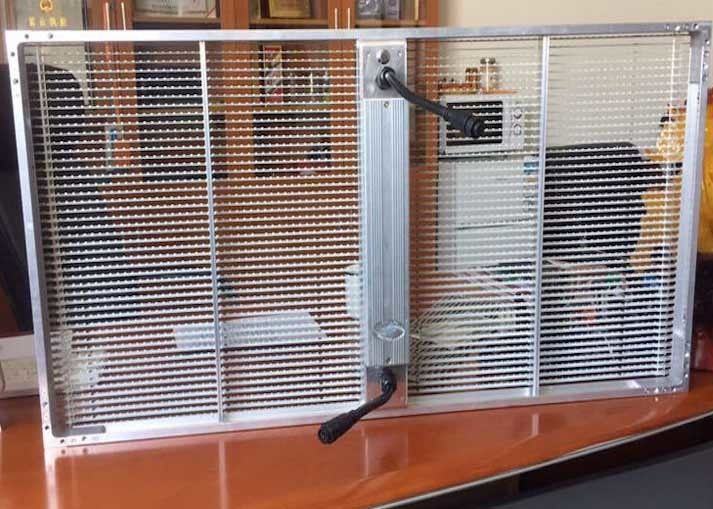

5mmx8mm Waterproof Glass Window Led Transparent Display Screen High Brightness
5mmx8mm Waterproof Glass Window Led Transparent Display Screen can be widely used on any building with glass window or wall, such as bank, large shopping mall, theatres, chain stores, hotels, and landmarks etc. It has 80% transparency and can achieve a great visual effect. It can be mounted directly on glass windows, as well as rental application for stage backdrop. It's 10mm ultra thin and 14kg lightweight, making it the perfect choice for creative designing company.
1. Easy maintenance
Quick and easy, repairing single SMD without taking out single module or entire panel
2. All kinds of applications
All kinds of building with glass window or wall, for example, bank, large shopping mall, theatres, chain stores, hotels, and landmarks etc.
3. Clear and visible
High brightness for high visibility even under direct sunlight, without any cooling system, energy efficient
4. Light weight and thin
Whole cabinet is only 14kg/㎡ light weight and 10mm thick, requires little space for the installation
5. Stable and reliable
Patented technology of inlaying SMD into PCB, the stability is much better than other similar products in the market.
6. Easy and quick installation
Fast lock systems ensure efficient installation and efficient.
7. High transparency 80%
Up to 80% transparency rate can keep the internal natural lighting and viewing, the SMD are almost invisible from distance.
| Brightness | nits | 5500 | ||
| Color temperature | deg.k | 3200 ~ 9300 | ||
| Viewing angle - Horizontal | deg. | 160(+80/-80) | ||
| Viewing angle - Vertical | deg. | 160(+80/-80) | ||
| Cabinet weight | kg | 8 | ||
| Cabinet width | mm | 960 | ||
| Cabinet height | mm | 640 | ||
| Cabinet depth | mm | 98 | ||
| Cabinet area | sq. m. | 0.61 | ||
| Cabinet material | Cold Steel | |||
| Aspect ratio | 3:2 | |||
| Ingress protection (Front/Rear) | IP | IP65/IP54 | ||
| Operating temperature range | deg. C | - 20 to 50 | ||
| Operating humidity range | HR | 10％ to 90％ | ||
| Pixel type and configuration | R/G/B | SMD 3in1 | ||
| Pixel pitch | mm | 5x8mm | ||
| Pixel matrix per cabinet | 192x80 | |||
| Pixels per cabinet | 15360 | |||
| Lines per meter | 4672 | |||
| Pixels per sq. meter | 25000 | |||
| LEDs per sq. meter | 25000 | |||
| Recommended minimum viewing distance | m | 5 | ||
| Colours | 281trillion | |||
| Gray scale | Levels | 65536 levels per colour | ||
| Brightness control | Levels | 100 | ||
| Digital processing | bit | 16 | ||
| Frame rate | Hertz | 60 | ||
| Display refresh rate | Hertz | 1920 | ||
| Input voltage | VAC | 110/240 | ||
| Input power frequency | Hertz | 50/60 | ||
| Input power (max/avg) | Watts per sq.m | 620/210 | ||
| MTBF | Hours | ≥10000 | ||
| Lifetime (50%Brightness) | Hours | ≥100000 | ||
| Module brightness uniformity | ＜5％ | |||
| Blind spot rate | ＜0.0001 | |||
| Earth leakage current | mA | ＜2 | ||
| Red wavelength | nm | 623 | ||
| Green wavelength | nm | 525 | ||
| Blue wavelength | nm | 470 | ||
| Panel input format (with video processor) | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV | |||
| Data interconnection | CAT6 cable/Fiber | |||
| Operating system | Windows(XP/Vista/7/8/10) | |||
| Control distance | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. | |||
