|Type:||Indoor Rental LED Screen||Pixel Pitch:||P1.95mm|
|Cabinet Size:||500x500||Service:||Front Service|
P1.95mm Stage Rental LED Display,
250x250mm Stage Rental LED Display,
P1.95mm Mini LED Display

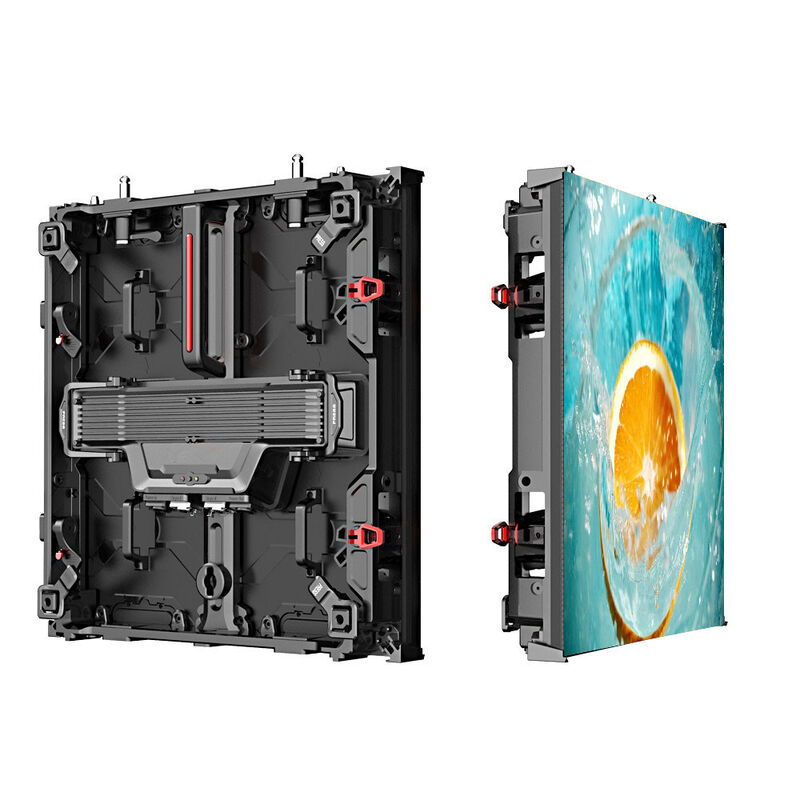

P1.95mm Stage Rental LED Display
Indoor P1.95mm 4 in 1 Mini 500x500mm Die Cast Aluminum Cabinet 3840Hz Refresh Rate Nation Star LED
Quick detail Of Indoor Rental LED Screen
1, Pixel Pitch: 1.95mm, 2.6mm. 2.9mm, 3.91mm
2, 4 in 1 Mini LED, dust proof, water resistent, more reliable than normal led
3, Greyscale: 16bits, 22bits with NOVA Star A8S
4, Cabinet size: 500x500mm Die Cast Aluminum
5, Recommended Viewing Distance: 2-4m.
6, Cabinet Material: Die Cast Aluminum Cabinet, 7.5kg Weight
7, Refresh Rate: 3840-7680Hz
8, Ingress Rate: IP43 Indoor, IP68 Outdoor
9,Quality Certificate:CE, RoHS,FCC, ETL
11, Curve Installation: Yes, Concave and Convex Available
12, Corner Protector: Yes, Semi-auto Corner Protector
Specification Of Indoor Rental LED Screen
|XT1.95||XT 2.6||XT 2.9||XT 3.91|
|Pixel Density||262,144 pixels/m2||147,456 pixels/m2||112,986 pixels/m2||65,536 pixels/m2|
|Module Dimensions(W x H) (mm)||250 x 250||250 x 250||250 x 250||250 x 250|
|Panel Dimensions (mm)||500 x 500 x 80||500 x 500 x 80||500 x 500 x 80||500 x 500 x 80|
|Modules Per Cabinet (W x H)||2 x 2||2 x 2||2 x 2||2 x 2|
|Module Resolution||128x128||96 x 96||84 x 84||64 x 64|
|Cabinet Resolution||256x256||192 x 192||168 x 168||128 x 128|
|Panel Material||Die Cast Aluminum||Die Cast Aluminum||Die Cast Aluminum||Die Cast Aluminum|
|Weight per Cabinet||7.5kg||7.5kg||7.5kg||7.5kg|
|Colours||281 trillion||281 trillion||281 trillion||281 trillion|
|Contrast Ratio||5,000 : 1||5,000 : 1||5,000 : 1||5,000 : 1|
|Average Power Consumption||200 W /Sqm||200 W /Sqm||200 W /panel||200 W /panel|
|Max Power Consumption||650 W /Sqm||650 W /Sqm||650 W /panel||650 W /panel|
|Brightness||>1,000 nits||>1,000 nits||>1,000 nits||>1,000 nits|
|Refresh Rate||>3,840 Hz||>3,840 -7680Hz||>3,840 Hz||>3,840 Hz|
|Vertical Viewing Angle||160°||160°||160°||160°|
|Horizontal Viewing Angle||140°||140°||140°||140°|
|Expected Lifetime||100,000 Hrs||100,000 Hrs||100,000 Hrs||100,000 Hrs|
|IP Rating (Front/Rear)||IP 43||IP 43||IP 43||IP 43|
|Operating Temp/Humidity||-20ºC - 50ºC / 10% - 90%||-20ºC - 50ºC / 10% - 90%||-20ºC - 50ºC / 10% - 90%||-20ºC - 50ºC / 10% - 90%|
|Storage Temp/Humidity||-20ºC - 50ºC / 10% - 90%||-20ºC - 50ºC / 10% - 90%||-20ºC - 50ºC / 10% - 90%||-20ºC - 50ºC / 10% - 90%|
|Scan Method||1/32 Scan||1/32 Scan||1/21 Scan||1/16 Scan|
Description Of Indoor Rental LED Screen
TBC LED XT Series indoor rental led screen include P1.95mm, P2.6mm, P2.9mm, 3.91mm. Features are:
1, Curve Application via Rotary Lock
2, Flash Function: Calibration Data Saved and Used Automatically
3, Front and Rear Maintenance via Magnets
4, Independent Power Box
5, Poster Function, Easily switched to a LED Poster
Feature Of Indoor Rental LED Video Wall
1, Modular Design, Easy Disassembly and Assembly. Screwless Fixing for Modules and Control Box. Installing/uninstalling From Front and Back Only within 3 Seconds.
2. Curve Application. Renewed Angle Adjustment Lock System. Rotary Lock System with Inner and Outer Arc From +- 15 Degree with Flexible Application. Patent Buckle Design, Lock in the Long Term Use Process will not Become Loose
3. Inner Arc and Outer Arc, Free Splicing. 500x500mm and 500x1000mm Cabinets can be Used Together Freely.
4. Poster Function. Use our poster screen accessaries to quickly build small screens. It is convenient and fast, and can broaden the application scenarios of display screen.
5. Protection Design. Semi auto corner protector, just press the button gently, the corner protection will pop up, quickly protect the display screen, convenient storage.
6. Self Protection Design. Inclination Design at cabinet bottom for self protection of LED, making cabinet and stand on ground steadily.
Application Of Indoor LED Video Wall with Mini LED
First is miniLED, which is a screen display technology, but not a screen panel. Why? Because miniLED is small, but not small enough to be comparable to a single pixel. As such, it is a form of backlight technology along with what we typically call side-entry backlighting as well as straight-down backlighting, which is a miniature form of backlighting configured in a full-array area dimming (FALD) area.
Full-array area dimming
miniLED backlight compared to the traditional side-entry backlight and straight-down backlight advantage is that its backlight LED bulb is smaller, you can achieve a finer and closer to the pixel dynamic backlight effect than before, which can effectively improve screen brightness and contrast, but also to control the dark areas of the display and the so-called light leakage phenomenon. But after all, it can not do the same with the OLED single pixel light, so its shortcomings are also very obvious: first, heat control and energy control is still the weakness of the traditional LCD / LED, and the essence is still the use of LCD panels miniLED technology, this aspect will not change; second, miniLED is still in the LCD panel to add miniLED light control area. So that its thickness and weight compared to OLED is also very difficult to solve the problem (even thinner you can not thin OLED), the third, not true pixel-level light control, the actual performance is not as good as OLED.
So, what about MicroLED? Although it is also composed of an organic bulb, but they are really pixel-level size, so you can call these bulbs "small beads", true pixel level. Then these "small beads" put together to become a whole panel, a whole screen. We often see LED billboards on the street, the big screen is a light-emitting LED bulbs "patchwork", MicroLED is essentially the same, but its LED bulbs are small to the pixel level.
From the basic theory, miniLED is just a backlight display technology, just a transition of LCD, will eventually be replaced by the use of self-illuminated OLED and MicroLED panels. Of course, at this stage, OLED and even MicroLED has not really been popular among consumers, especially MicroLED, so there is still a long way to go.
It is certain that in the next three to five years, miniLED will gradually move to the mainstream, OLED is also, the field of television and cell phones have gradually entered the entry-level consumer, and now the display field, three to five years of time to pave the entire market should not be a problem. And MicroLED? A report points out that by 2026, that is, 6 years later, MicroLED will gradually become mainstream and become a mass market products. Of course, this analysis is only analysis, cost reduction to improve the yield rate, while after the market test is the most important.
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
Q1. How does the semi auto corner protector work?
A: Gently push the button, the corner protector will release and cover the corner area.
A: Either stacking on ground or haning is supported.
A: Low MOQ, modules or complete screen order are all welcome.
A: Air freight, sea and train transport according to different region.
A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.
A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.
A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping
