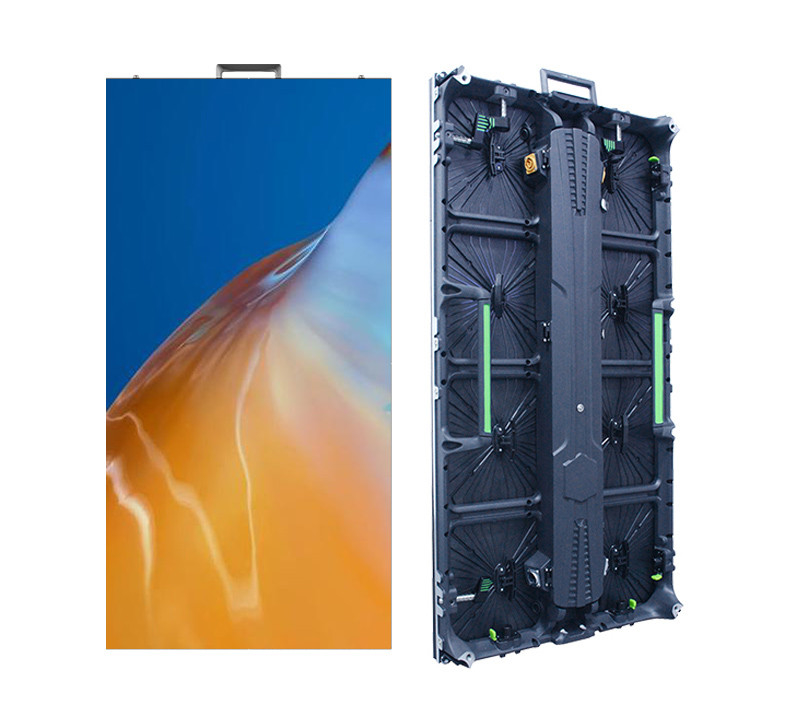

500x1000mm P4.81mm Indoor LED Screen Rental With 3840Hz Refresh Rate
  • 500x1000mm P4.81mm Indoor LED Screen Rental With 3840Hz Refresh Rate
  • 500x1000mm P4.81mm Indoor LED Screen Rental With 3840Hz Refresh Rate
  • 500x1000mm P4.81mm Indoor LED Screen Rental With 3840Hz Refresh Rate
  • 500x1000mm P4.81mm Indoor LED Screen Rental With 3840Hz Refresh Rate
  • 500x1000mm P4.81mm Indoor LED Screen Rental With 3840Hz Refresh Rate

500x1000mm P4.81mm Indoor LED Screen Rental With 3840Hz Refresh Rate

Place of Origin China
Brand Name TBC LED
Certification FCC, CE, ROHS
Model Number P4.81
Product Details
Type:
Indoor Rental LED Screen
Pixel Pitch:
P4.81mm
Cabinet Size:
500x1000
Service:
Front Magnetic Service
Weight:
7.5kg
Module Size:
250x500mm
High Light:

P4.81mm Indoor LED Screen Rental

,

500x1000mm Indoor LED Screen Rental

,

500x1000mm P4.81 LED Display

Product Description

500x1000mm P4.81mm Indoor LED Screen Rental With 3840Hz Refresh Rate



500x1000mm P4.81mm LED Rental Screen With Independent Power Box



Outdoor P4.81mm 500x1000mm Die Cast Aluminum Cabinet High Brightness 5000nits With Independent Power Box



Application of Outdoor Rental LED Screen

1. Light, thin

Standardized box size 500 * 500mm/500 * 1000mm. Box weight only 8kg/PCs and 13.kg/PCs. The thin and light cabinet design is easy to install and remove. The standard 500x500mm and 500x1000 mm sizes can meet all the requirements for some special sizes, especially for stage rental applications

2. Box body adjustable radian

Radian box can be selected for curved installation to meet the requirements of different shapes such as "S", "O", "L", "T" and "C".

3. Quick installation

The quick lock is used for the box body, and the humanized design simplifies the whole system.

4. High-definition highlight

The brightness can reach 5000 CD/㎡, and the screen can be seen clearly even in sunlight. High contrast, high refresh rate and high grayscale, with excellent visual effects



Specification Of Indoor Rental LED Screen

  AT 2.9 AT 3.9 AT 4.8
Pixel Pitch 2.976mm 3.91mm 4.81mm
Pixel Configuration SMD1415 SMD1921 SMD1921
Pixel Density 86,016 pixels/m2 65,536 pixels/m2 43,264 pixels/m2
Module Dimensions(W x H) (mm) 250 x 500 250 x 250 250 x 250
Panel Dimensions (mm)

500 x 500 x 80

500 x 1000 x 80

500 x 500 x 80

500 x 1000 x 80

500 x 500 x 80

500 x 1000 x 80

Modules Per Cabinet (W x H) 1 x 2 1 x 2 1 x 2
Module Resolution 168 x 84 128 x 64 104 x 52
Cabinet Resolution 168 x 168 128 x 128 104 x 104
Panel Material Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum
Weight per Cabinet 7.5kg 7.5kg 7.5kg
Digital Processing 16bit 16bit 16bit
Colours 281 trillion 281 trillion 281 trillion
Contrast Ratio 5,000 : 1 5,000 : 1 5,000 : 1
Average Power Consumption 200 W /Sqm 200 W /panel 200 W /panel
Max Power Consumption 650 W /Sqm 650 W /panel 650 W /panel
Brightness >5,000 nits >5,000 nits >5,000 nits
Refresh Rate >3,840Hz >3,840 Hz >3,840 Hz
Vertical Viewing Angle 160° 160° 160°
Horizontal Viewing Angle 140° 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front Front Front
IP Rating (Front/Rear) IP 68 IP 68 IP 68
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
Scan Method 1/21 Scan 1/16 Scan 1/13 Scan



Feature Of Outdoor Rental LED Screen

TBC LED Ant Series outdoor rental led screen include P2.9mm, 3.91mm and P4.81mm Features are:

1, Adjustable Angle lock for curve Application via Rotary Lock

2, Advanced Flash Function: The Calibration Data can be Saved to the receiver card and used automatically

3, Outdoor Waterproof IP68 Standard, Front and Rear Maintenance via Magnets

4, Rubber seal for the back of the module, to create maximum protection against rain or moisture

5, Easy to use corner protectors, push it and corner protector released

outdoor rental led screen

outdoor rental led screen

outdoor rental led screen





Our Services



1. 10 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request



FAQ



Q1. How does the semi-auto corner protector work?



A: Gently push the button, the corner protector will release and cover the corner area.

Q2. What installation options do we have?

A: Either stacking on the ground or hanging is supported.

Q3. Do you have any MOQ limit for led screen orders?

A: Low MOQ, modules or complete screen orders are all welcome.

Q4. What's the shipping method?

A: Airfreight, sea and train transport according to different regions.

Q5. What's the payment method?

A: Mostly we accept telegraphic transfer, 50% before production and 50% balance before shipment.

Q6. How do you control the production quality?

A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.

The modules and complete screen will have at least 72 hours aging test, to make sure of stable quality and performance.

Q7: How does warranty work?

A: We provide 1-3 years warranty for different products. Free Repair or Exchange of Defective Parts with One-way Shipping
