Giant Series Indoor P2.9mm 3840Hz Refresh Rate 500x500mm Stage Rental LED Display Light Weight Design
Feature Of Indoor Giant Series Rental LED Video Wall
Application:

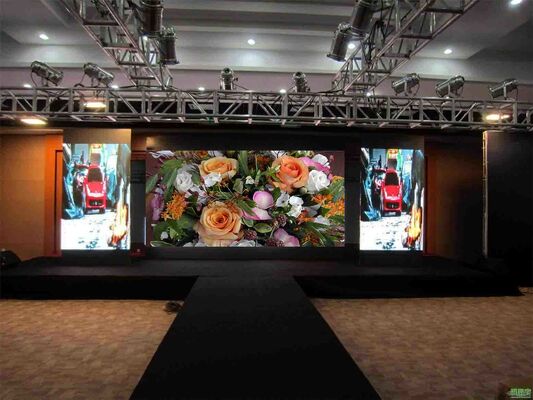

It is widely used in stage leasing, song and dance evening, various press conferences, exhibitions, stadiums, theaters
Auditorium, lecture hall, multi-function hall, conference room, performance hall, high-end entertainment places, etc
Product features:
1. The production process of die-casting aluminum is used, and the box is strong and not easy to deform
2. Ultra thin and light hoisting design, convenient for quick installation and disassembly
3. High refresh rate, clear and vivid picture
4. Quick fixture design, seamless splicing
5. The box structure is simple and beautiful, with good heat dissipation, fan free and noise free design
Quick detail Of Indoor Rental LED Screen
1, Pixel Pitch: 2.6mm. 2.9mm, 3.91mm
2, Quality and High Contrast SMD LEDs, Wide viewing angle: 140°/ 140°.
3, Greyscale: 16bits, 22bits with NOVA Star A8S
4, Cabinet size: 500x500mm Die Cast Aluminum
5, Recommended Viewing Distance: 2-4m.
6, Cabinet Material: Die Cast Aluminum Cabinet, 7.5kg Weight
7, Refresh Rate: 3840-7680Hz
8, Ingress Rate: IP43 Indoor, IP68 Outdoor
9,Quality Certificate:CE, RoHS,FCC, ETL
10,Brightness:>1000cd/sqm
11, Curve Installation: Yes, Concave and Convex Available
12, Corner Protector: Yes, Semi-auto Corner Protector
Specification Of Indoor Rental LED Screen
XT1.95 | XT 2.6 | XT 2.9 | XT 3.91 | |
Pixel Pitch | 1.953mm | 2.604mm | 2.97mm | 3.91mm |
Pixel Configuration | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
Pixel Density | 262,144 pixels/m2 | 147,456 pixels/m2 | 112,986 pixels/m2 | 65,536 pixels/m2 |
Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
Module Resolution | 128x128 | 96 x 96 | 84 x 84 | 64 x 64 |
Cabinet Resolution | 256x256 | 192 x 192 | 168 x 168 | 128 x 128 |
Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
Digital Processing | 16bit | 16bit | 16bit | 16bit |
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /panel | 200 W /panel |
Max Power Consumption | 650 W /Sqm | 650 W /Sqm | 650 W /panel | 650 W /panel |
Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
Refresh Rate | >3,840 Hz | >3,840 -7680Hz | >3,840 Hz | >3,840 Hz |
Vertical Viewing Angle | 160° | 160° | 160° | 160° |
Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
Servicing | Front | Front | Front | Front |
IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Scan Method | 1/32 Scan | 1/32 Scan | 1/21 Scan | 1/16 Scan |
Description Of Indoor Rental LED Screen
TBC LED XT Series indoor rental led screen include P1.95mm, P2.6mm, P2.9mm, 3.91mm. Features are:
1, Curve Application via Rotary Lock
2, Flash Function: Calibration Data Saved and Used Automatically
3, Front and Rear Maintenance via Magnets
4, Independent Power Box
5, Poster Function, Easily switched to a LED Poster
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi auto corner protector work?
A: Gently push the button, the corner protector will release and cover the corner area.
A: Either stacking on ground or haning is supported.
A: Low MOQ, modules or complete screen order are all welcome.
A: Air freight, sea and train transport according to different region.
A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.
A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.
A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping
