Glory Series 500x500mm Outdoor Rental LED Display
  • Glory Series 500x500mm Outdoor Rental LED Display
  • Glory Series 500x500mm Outdoor Rental LED Display
  • Glory Series 500x500mm Outdoor Rental LED Display
  • Glory Series 500x500mm Outdoor Rental LED Display
  • Glory Series 500x500mm Outdoor Rental LED Display
Glory Series 500x500mm Outdoor Rental LED Display

Glory Series 500x500mm Outdoor Rental LED Display

Place of Origin China
Brand Name TBC LED
Certification FCC, CE, ROHS
Model Number P2.9, P3.91, P4.81
Product Details
Type:
Outdoor Rental LED Screen
Pixel Pitch:
P2.9mm, P3.91mm, P4.81mm
Cabinet Size:
500x500mm/500x1000mm
Service:
Rear Service
Pixel Configuration:
SMD2020
Module Size:
250x250mm
Highlight:

SMD2020 Stage Rental LED Display

,

SMD1515 Stage Rental LED Display

,

SMD2020 Stage Background LED Display

Product Description

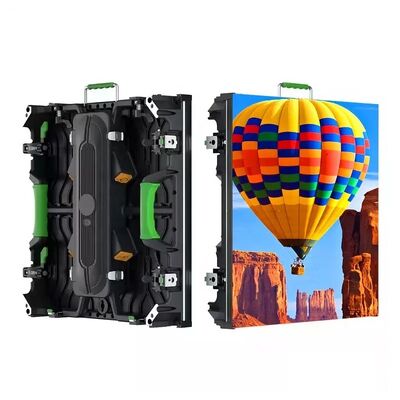

Die Cast aluminum light weight Structure

Through thoughtful engineering and craftsmanship, the Glory series features a thin, lightweight, high-strength die-casting in a modular design to fit a wide range of simple or complex applications. The unique structural design of Outdoor Rental has pioneered, patented and perfected the use of die casting in the construction of LED video wall displays.
Glory Series 500x500mm Outdoor Rental LED Display 0

Seamless Screen Splicing and Support ±15 degree installation

Arc shaped panel edge, seamless splicing and no angle acquirement,perfect arc-bending panel technology. Double-side 15 degree oblique angle design,support ±15 degree assembly.
Glory Series 500x500mm Outdoor Rental LED Display 1

Fast, Flexible installation and maintence

Glory Series accommodates the fast-paced nature of rental, staging and flexible installations.With modular design, free-standing or hanging applications, supporting independent failed module replacement which is quite fast and cost saving for repair and maintence
Glory Series 500x500mm Outdoor Rental LED Display 2

Outdoor IP65 waterproof protection

The Glory Series designed to perform in all kinds of outdoor and indoor environments. Earning an IP65 Protection Rating, the dust-tight enclosure of the glory series works to protect the LED video wall display in outdoor installations.
Glory Series 500x500mm Outdoor Rental LED Display 3
Glory Series 500x500mm Outdoor Rental LED Display 4



  Glory 2.9 Glory 3.91 Glory 4.81
Pixel Pitch 2.9mm 3.91mm 4.81mm
Pixel Configuration SMD1515 SMD1921 SMD1921
Pixel Density 112,986 pixels/m2 65,536 pixels/m2 43,264 pixels/m2
Module Dimensions(W x H) (mm) 250 x 250 250 x 250 250 x 250
Panel Dimensions (mm) 500 x 500 x 80 500 x 500 x 80 500 x 500 x 80
Modules Per Cabinet (W x H) 2 x 2 2 x 2 2 x 2
Module Resolution 84 x 84 64 x 64 52 x 52
Cabinet Resolution 168 x 168 128 x 128 104 x 104
Panel Material Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum
Weight per Cabinet 7.5kg 7.5kg 7.5kg
Digital Processing 16bit 16bit 16bit
Colours 281 trillion 281 trillion 281 trillion
Contrast Ratio 5,000 : 1 5,000 : 1 5,000 : 1
Average Power Consumption 200 W /Sqm 200 W /panel 200 W /panel
Max Power Consumption 650 W /Sqm 650 W /panel 650 W /panel
Brightness >4,500 nits >5,000 nits >5,000 nits
Refresh Rate >3,840 Hz >3,840 Hz >3,840 Hz
Vertical Viewing Angle 160° 160° 160°
Horizontal Viewing Angle 140° 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Rear Rear Front
IP Rating (Front/Rear) IP 65 IP 65 IP 65
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
Scan Method 1/32 Scan 1/16 Scan 1/13 Scan
