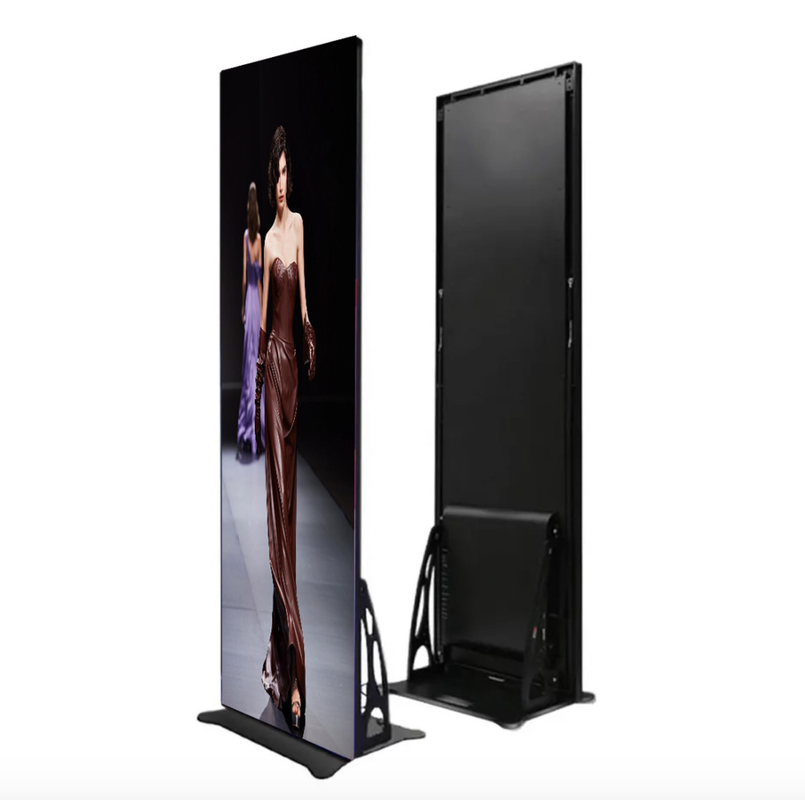

Creative LED Display
>
|
|
| Place of Origin | China |
| Brand Name | TBC LED |
| Certification | FCC, CE, ROHS |
| Model Number | P1.25 |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Specifications
| Pixel Pitch | 2mm | ||
| Pixel Configuration | SMD1515 | ||
| Pixel Density | 250000 pixels/m2 | ||
| Module Dimensions | 320 x 160mm | ||
| Panel Dimensions (mm) | 640mmx1940mmx55mm | ||
| Cabinet Resolution | 320 x 960 | ||
| Panel Material | Die Cast Aluminum | ||
| Weight per Cabinet | 42kg | ||
| Digital Processing | 16bit | ||
| Colors | 281 trillion | ||
| Contrast Ratio | 5,000 : 1 | ||
| Ave/Max Power Consumption | 150/480 | ||
| Brightness | >1,000 nits | ||
| Refresh Rate | >3,840 Hz | ||
| Viewing Angle V/H | 120°/ 120° | ||
| Servicing | Front | ||
| IP Rating (Front/Rear) | IP 31 | ||
| Life Span | 100,000 hours | ||
![]()
