| Place of Origin | China |
| Brand Name | TBC |
| Certification | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number | E2i |

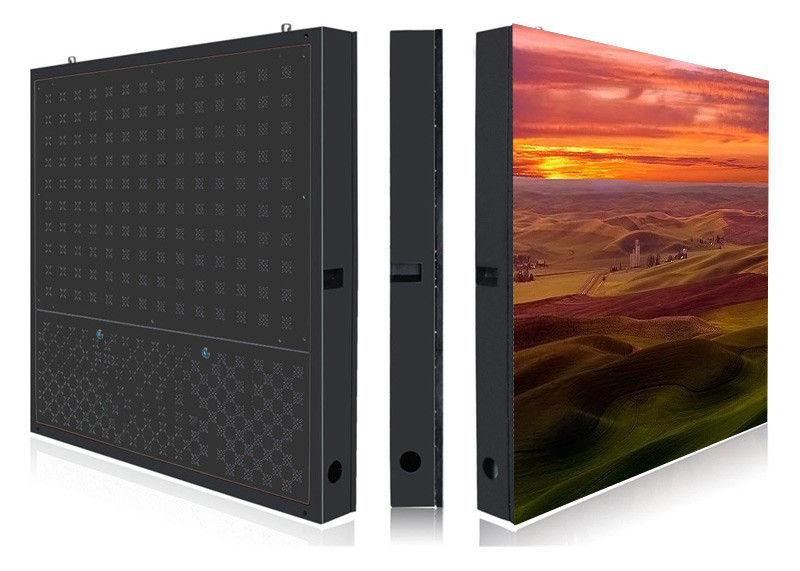

HD P2mm SMD Indoor LED Video Wall Stage Meeting Room Display For Advertising
HD P2mm SMD Indoor LED Video Wall Stage Meeting Room Display For Advertising are able to produce High Density Video Quality, Bring you the true HD 4K Experience also Stable and reliable, it is the most popular product on LED indoor video wall market, annual sales over 10,000sqm, as well as super light and slim, saves freight cost and portable, very easy to use. It is mainly used in enterprises, institutions, sports venues, the ticket hall, hotels, securities companies, schools, stage, public security, shopping centers and other fields.
1. Front service module, aluminum module design, durable and reliable
2. IP rating IP65, durable for any weather condition
3. High contrast ratio, vivid color
4. Wireless control available, no need computer standing by
5. Side handle for easy carrying and assemble job
| Brightness | nits | 800 | ||
| Color temperature | deg.k | 3200 ~ 9300 | ||
| Viewing angle - Horizontal | deg. | 160(+80/-80) | ||
| Viewing angle - Vertical | deg. | 160(+80/-80) | ||
| Cabinet weight | kg | 12 | ||
| Cabinet width | mm | 512 | ||
| Cabinet height | mm | 512 | ||
| Cabinet depth | mm | 120 | ||
| Cabinet area | sq. m. | 0.26 | ||
| Cabinet material | Cold Steel | |||
| Aspect ratio | 1:1 | |||
| Ingress protection (Front/Rear) | IP | IP40/IP20 | ||
| Operating temperature range | deg. C | 0 to 40 | ||
| Operating humidity range | HR | 10％ to 90％ | ||
| Pixel type and configuration | R/G/B | SMD 3in1 | ||
| Pixel pitch | mm | 2 | ||
| Pixel matrix per cabinet | 256x256 | |||
| Pixels per cabinet | 65536 | |||
| Lines per meter | 500 | |||
| Pixels per sq. meter | 250000 | |||
| LEDs per sq. meter | 250000 | |||
| Recommended minimum viewing distance | m | 2 | ||
| Colours | 281trillion | |||
| Gray scale | Levels | 65536 levels per colour | ||
| Brightness control | Levels | 100 | ||
| Digital processing | bit | 16 | ||
| Frame rate | Hertz | 60 | ||
| Display refresh rate | Hertz | 1920 | ||
| Input voltage | VAC | 110/240 | ||
| Input power frequency | Hertz | 50/60 | ||
| Input power (max/avg) | Watts per sq.m | 640/220 | ||
| MTBF | Hours | ≥10000 | ||
| Lifetime (50%Brightness) | Hours | ≥100000 | ||
| Module brightness uniformity | ＜5％ | |||
| Blind spot rate | ＜0.0001 | |||
| Earth leakage current | mA | ＜2 | ||
| Red wavelength | nm | 623 | ||
| Green wavelength | nm | 525 | ||
| Blue wavelength | nm | 470 | ||
| Panel input format (with video processor) | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV | |||
| Data interconnection | CAT6 cable/Fiber | |||
| Operating system | Windows(XP/Vista/7/8/10) | |||
| Control distance | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. | |||
