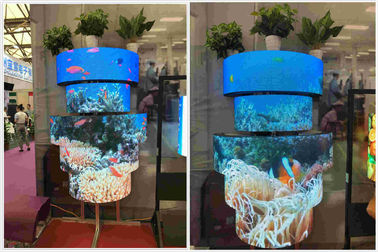

P1.9mm HD LED Display

P1.9mm HD LED Display
P1.9mm HD LED Display P1.9mm HD LED Display P1.9mm HD LED Display P1.9mm HD LED Display

Large Image :  P1.9mm HD LED Display

Product Details:
Place of Origin: China
Brand Name: TBC
Certification: CE-EMC, CE-LVD, RoHS, ETL, FCC
Model Number: F1.9
Payment & Shipping Terms:
Minimum Order Quantity: 10sqm
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 25days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 10,000sqm/month
Detailed Product Description
Pixel Pitch: 1.9mm Size: 1 Feet By 1 Feet
Contrast: 3000:1 Dimension: Customizable
Thickness: 40mm System: NOVA Star
High Light:

P1.9mm HD LED Display


3840Hz HD LED Display


P1.9mm HD LED Screen

P1.9mm HD LED Display


P1.9mm HD LED Display Indoor Flexible Soft Module Integrated Power Signal Cable


4K Video Quality P1.9mm Indoor Flexible Soft Module Led High Refresh 3840Hz Video Screen



Is compatible for concave, convex, round, S shape led screen


Features and Advantages:



Varies kind of shape are possible to be made from concave, convex, and S shape led screen etc
Flexible Module with Housing in Segment
Free limits to your design



Configuration SMD1515
Pixel Pitch 1.9mm
Module Size(mm) 304.8 x 304.8mm(1ft*1ft)
Module Resolution (pixels) 160 x 160 pixels
Module Weight 1.1kg
Color Depth 12-16 bit
Colors 4096-65536
Refresh Rate(Hz) ≥1920 Hz
Scan Mode 1/32
Brightness 800 nits
Viewing Distance (mm) ≥ 1.9mm
Viewing Angle(°) 110°
Input Voltage(V) 100-240 V/ 50-60 Hz
Max Power Consumption 618w/sqm
Ave Power Consumption 206w/sqm
Temperature -20 ℃/+50℃ (working)
‐40 ℃/ +60℃ (storage) ‐40 ℃/ +60℃ (storage)
IP Level IP 40 / IP 21
Humidity 10%~60% (working)
10%~90% (storage) 10%~90% (storage)
Lifespan(hours) 100000
Installation Way Fix
LED Kinglight/Nationstar
IC ICN2053
Control Box

one control 6pcs modules


P1.9mm HD LED Display 0



Tiles made from magnesium, and is front accessible



One input combined power and data, save time for assembly and also enable the stability

P1.9mm HD LED Display 1


Independent control box could be fixed separately from the structure and module



One control box has 3 output, each output control 2 module, 6 on 1 control box


P1.9mm HD LED Display 2




The degree between each segement is 8°, enable maximum 80 degree in convex and concave per module
The PCB and LED will not be damaged until housing was been broken apart
Less possility to be damaged during installation and maintenance


P1.9mm HD LED Display 3
