5000nits Stage Rental LED Display
  • 5000nits Stage Rental LED Display
  • 5000nits Stage Rental LED Display
  • 5000nits Stage Rental LED Display
  • 5000nits Stage Rental LED Display
  • 5000nits Stage Rental LED Display

5000nits Stage Rental LED Display

Place of Origin China
Brand Name TBC LED
Certification FCC, CE, ROHS
Model Number P4.81
Product Details
Type:
Outdoor Rental LED Screen
Pixel Pitch:
P4.81mm
Cabinet Size:
500x500
Service:
Rear Service
Weight:
7.5kg
Module Size:
250x250mm
High Light:

5000nits Stage Rental LED Display

,

P4.81mm Stage Rental LED Display

,

P4.81mm LED Display Screen Rental

Product Description

5000nits Stage Rental LED Display



5000nits P4.81mm Outdoor Rental LED Screen With 3840Hz Refresh Rate

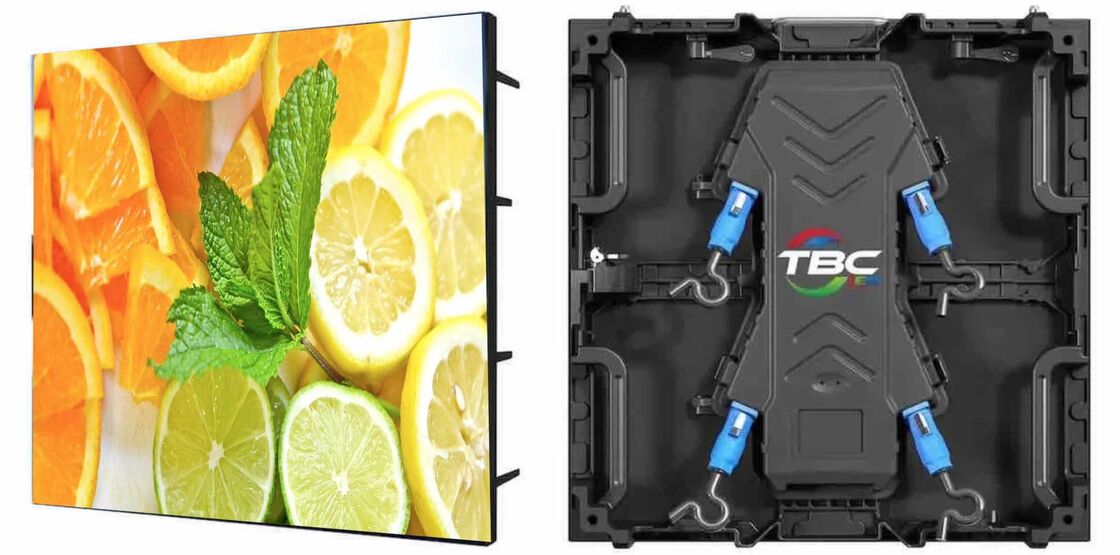

Outdoor P4.81mm 500x500mm Die Cast Aluminum Cabinet High Brightness 5000nits With 3840Hz Refresh Rate​



 Feature Of Outdoor Rental LED Screen

In today's era, LED rental screen has been the standard for the stage, vivid image of the wonderful performance with a realistic background switch, both shocking and stunning, is the stage interpretation of the good partner, 10,000 people share the excitement, there should be enough professional display screen, the pursuit of stage interpretation display, is also being recognized by many customers such a larger and more professional stage.
1, TBC LED P4.81 LED rental screen, refresh frequency of 1920Hz or more, clear and delicate picture, color realistic, stable performance, excellent display effect, giving a kind of immersive scene experience;.

2, The use of standardized box structure, a cast into the shape, high flatness; easy to disassemble, light quality, convenient transportation. The lightness of the box, can be quickly installed, dismantled and transported, infinite compatibility, to meet the requirements of lifting, stacking and so on.

3, The use of synchronous control of the system processing, can accept DVI, VGA, HDMI, S-video, composite, YUV and other kinds of video input signal, can play video, graphics and other programs at will, to real-time, synchronous, clear information dissemination of various kinds of information.

4, high strength hardness precision, good heat dissipation, low power consumption of the box, energy saving and environmental protection.



This is one of the star products carefully built by TBC LED for the indoor and outdoor rental market, and its powerful visual impact and excellent advertising ability have been widely used in exhibitions, performances and other commercial display occasions. Especially in recent years, with the national policy to vigorously support the development of cultural and tourism industries around the country, China's culture, entertainment and sports industry vitality further release, LED display rental market has huge potential and strong market demand.



Quick detail Of Outdoor Rental LED Screen

1, Pixel Pitch: 2.9mm, 3.91mm, 4.81mm
2, Waterproof Nation Star SMD LEDs, high brightness and high reliability
3, Greyscale: 14bits with NOVA  MRV328
4, Cabinet size: 500x500mm and 500x1000mm Die Cast Aluminum Cabinet
5, Service type: Rear service for smooth surface

6, PSU: Brand power supply, stable and reliable

7, Refresh Rate: 1920-3840Hz

8, Ingress Rate: IP68 Outdoor standard

9, Quality Certificate:CE, RoHS,FCC, ETL

10, Brightness:>5000cd/sqm

11, Curve Installation: Rotary lock for +- 15 degree Concave and Convex shape

12, Corner Protector: Optional



Specification Of Outdoor Rental LED Screen

  XT 2.9 XT 3.9 XT 4.8
Pixel Pitch 2.976mm 3.91mm 4.81mm
Pixel Configuration SMD1415 SMD1921 SMD1921
Pixel Density 86,016 pixels/m2 65,536 pixels/m2 43,264 pixels/m2
Module Dimensions(W x H) (mm) 250 x 250 250 x 250 250 x 250
Panel Dimensions (mm)

500 x 500 x 80

500 x 1000 x 80

500 x 500 x 80

500 x 1000 x 80

500 x 500 x 80

500 x 1000 x 80

Modules Per Cabinet (W x H) 2 x 2 2 x 2 2 x 2
Module Resolution 84 x 84 64 x 64 52 x 52
Cabinet Resolution 168 x 168 128 x 128 104 x 104
Panel Material Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum
Weight per Cabinet 7.5kg 7.5kg 7.5kg
Digital Processing 16bit 16bit 16bit
Colours 281 trillion 281 trillion 281 trillion
Contrast Ratio 5,000 : 1 5,000 : 1 5,000 : 1
Average Power Consumption 200 W /Sqm 200 W /panel 200 W /panel
Max Power Consumption 650 W /Sqm 650 W /panel 650 W /panel
Brightness >5,000 nits >5,000 nits >5,000 nits
Refresh Rate >3,840Hz >3,840 Hz >3,840 Hz
Vertical Viewing Angle 160° 160° 160°
Horizontal Viewing Angle 140° 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front Front Front
IP Rating (Front/Rear) IP 68 IP 68 IP 68
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
Scan Method 1/21 Scan 1/16 Scan 1/13 Scan



Description Of Outdoor Rental LED Screen

TBC LED outdoor rental led screen include P2.9mm, 3.91mm and P4.81mm Features are:

1, Adjustable Angle lock for curve Application via Rotary Lock

2, Advanced Flash Function: The Calibration Data can be Saved to the receiver card and used automatically

3, Outdoor Waterproof IP68 Standard, Front and Rear Maintenance via Magnets

4, Rubber seal for the back of module, to create maxiumum protection against rain or moisture

5, Easy to use corner protectors, push it and corner protector released



Application Of Outdoor LED Video Wall

1. Ultra-light - weight only 8kg, one hand can be carried, quick installation

2. Ultra-thin - the box body is made of die-casting aluminum molding, high strength, toughness, high precision, not easy to deformation, for the transportation of labor-saving

3. High precision - size is electromechanical processing accurate to 0.1mm

4. Compatible - new structure design, to meet the requirements of lifting, stacking, to meet the requirements of indoor and outdoor

5. Quick - box up and down left and right connection using fast locking mechanism

6. Reliable - high strength and hardness, good heat dissipation

7. Cost - light weight of the box, the required installation costs are low; low power consumption of the box, saving operating costs and reducing labor costs



p4.81mm outdoor rental led screen

p4.81mm outdoor rental led screen

p4.81mm outdoor rental led screen











Our Services



1. 10 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request



FAQ



Q1. How does the semi auto corner protector work?



A: Gently push the button, the corner protector will release and cover the corner area.

Q2. What installation options do we have?

A: Either stacking on ground or haning is supported.

Q3. Do you have any MOQ limit for led screen order?

A: Low MOQ, modules or complete screen order are all welcome.

Q4. What's the shipping method?

A: Air freight, sea and train transport according to different region.

Q5. What's the payment method?

A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.

Q6. How do you control the production quality?

A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.

The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.

Q7: How does warranty work?

A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping
