P3.81 - 7.82mm Frameless LED Mesh Screen Transparent Outdoor For Glass Window

P3.81 - 7.82mm Frameless LED Mesh Screen Transparent Outdoor For Glass Window
P3.81 - 7.82mm Frameless LED Mesh Screen Transparent Outdoor For Glass Window

Large Image :  P3.81 - 7.82mm Frameless LED Mesh Screen Transparent Outdoor For Glass Window

Product Details:
Place of Origin: China
Brand Name: TBC LED
Certification: FCC, CE, ROHS
Model Number: P3.91-7.82mm
Payment & Shipping Terms:
Minimum Order Quantity: 10sqm
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 1000 sqm per month
Detailed Product Description
Type: Transparent LED Mesh Display Pixel Pitch: P3.91-7.82mm
Cabinet Size: 500x1000mm Service: Front And Rear Service
Weight: 6.4kg LED Type: High Brightness DIP
High Light:

Frameless LED Mesh Screen

,

Transparent DIP LED Mesh Screen

,

waterproof Transparent LED Mesh

Glass Window Outdoor P3.81-7.82mm Frameless LED Mesh Display 3840 High Refresh Rate



Application Of Outdoor Advertising LED Mesh Display

The application of LED transparent screen in stage dance display is also amazing. The LED transparent screen can be built according to the diversification of the stage shape. The screen is hung in a patchwork manner to show the overall depth of the stage frame. By using the transparent, light and colorful characteristics of the screen itself, it produces a strong perspective effect and lengthens the depth of field of the whole picture. In addition, the transparent LED display screen uses the unique screen display technology and the transparent characteristics of the screen body to form a three-dimensional, realistic, virtual ideal space, multi-screen co-display, which enhances the sense of hierarchy and movement for the image movement and stage effect of the space. Compared with the traditional LED display screen, the LED transparent screen shows the three-dimensional and realistic effect of the three-dimensional space, and the visual effect is more shocking. Window New Media LED transparent screen integrates many advantages such as convenient installation, high permeability, thin and beautiful, which perfectly solves the problem of video display in the window of retail industry, enriches the advertising style and makes its advertising design very attractive.



Quick detail Of Outdoor Advertising LED Mesh

1, Pixel Pitch: 10.4mm, 8mm, 3.91-7.82mm
2, SMD1921 LED, high brightness and durable for outdoor use
3, Greyscale: 16bits
4, Cabinet size: 500x1000mm Die Cast Aluminum
5, Recommended Viewing Distance: 10-16m.

6, Cabinet Material: Die Cast Aluminum Cabinet, 21kg Weight

7, Refresh Rate: 3840Hz

8, Ingress Rate: IP68 Outdoor Standard Connectors

9,Quality Certificate:CE, RoHS,FCC, ETL

10,Brightness:>7000-8500cd/sqm

11, Curve Installation: Yes, Concave and Convex Available



Specification Of Outdoor Advertising LED Mesh Screen

Product Unit Parameters

Parameters

Mode TP10.4 TP8 TP3.91-7.82
LEDs 1R1G1B 1R1G1B 1R1G1B
LED type SMD1921 SMD1921 SMD1921
Pixel pitch 10.4mm 8mm 3.91-7.82mm
Unit size W500×H1000mm W500×H1000mm W500×H1000mm
Resolution 9216dots/㎡ 2048dots/㎡ 32768dots/㎡
Unit direction Vertical Vertical Horizontal Vertical Horizontal
Transparency rate 45% 75% 85%
Brightness ≥5500nit ≥7000nit ≥3500nit
Weight 22KG/㎡ 21KG/㎡ 19KG/㎡
Max consumption 480W/㎡ 300W/㎡ 280W/㎡
Adv consumption 160W/㎡ 130W/㎡ 125W/㎡
Viewing angle H120°/V120° H120°/V120° H120°/V120°
Protection level IP68 IP68 IP68
Tube structure 1 row, 4 columns. 1 row, 2 columns 1 row, 2 columns
Tube width 47mm 8.5mm 8.5mm
Thickness 110mm 110mm 110mm
Install depth 150mm 150mm 150mm

Heat dissipation



Convective heat dissipation Convective heat dissipation Convective heat dissipation
Wind dissipaion Level 12 Level 12 Level 12
Power supply Power supply with PFC Power supply with PFC Power supply with PFC
Installation Fast install Fast install Fast install
Fire safety 10S/unit 10S/unit 10S/unit
Fire resistance Full VO grade Full VO grade Full VO grade
Service Front,Back Front,Back Front,Back
Control mode steady state steady state steady state
Color temperature 3200-9300K 3200-9300K 3200-9300K
Refresh rate 60Hz 60Hz 60Hz
Working temperature -40℃ to 70℃ -40℃ to 70℃ -40℃ to 70℃
Storage temperature -55℃ to 120℃ -55℃ to 120℃ -55℃ to 120℃
Life time ≥100,000 hours ≥100,000 hours ≥100,000 hours
Input voltage AC110-220V AC110-220V AC110-220V
Grey grade 16bit 16bit 16bit
Seismic capability 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes



Description Of Outdoor Advertising LED Mesh Billboard

1. High permeability . Conventional screens are opaque, just like a wall, but LED transparent screens have a transparency rate of up to 65% -90, do not shade, look like nothing, and do not affect the beauty of the building.

2. Die casting aluminum box body and Lightweight design. LED transparent screen is extremely lightweight design, the weight of a single square is as light as 12 KG, and one hand can lift it at will, which is nothing compared with the conventional display screen of 30 KG/㎡.

3. Simple installation and Easy maintenance. Due to the light weight, the dependence of the LED transparent screen on the steel structure is greatly reduced, and when the LED transparent screen is damaged, only the light bar module needs to be replaced, and the LED transparent screen can be operated indoors, which is simple and fast, and the conventional LED display screen can not catch up with these two points.

4. Nergy conservation and environmental protection . The LED transparent screen has good heat dissipation performance and does not need an independent air conditioning system. However, this heat dissipation system is indispensable to the conventional screen. After testing, the LED transparent screen saves more than 30% energy than the conventional screen and is more environmentally friendly.

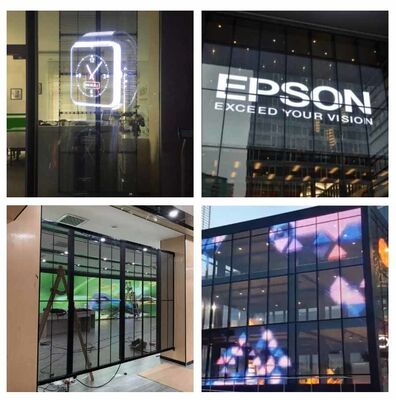

transparent led facade glass window

transparent led facade glass window

transparent led facade glass window







Our Services



1. 10 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request



FAQ



Q1. How does the service work?

A: We have experienced Engineers who worked in the industry for 15 years and able to communicate with fluent English. They can remotely provide technical support via video conference or teamviewer or go to the site for the guidance.

Q2. What installation options do we have?

A: Wall mounting with metal structures.

Q3. Do you have any MOQ limit for led screen order?

A: Low MOQ, modules or complete screen order are all welcome.

Q4. What's the shipping method?

A: Air freight, sea and train transport according to different region.

Q5. What's the payment method?

A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.

Q6. How do you control the production quality?

A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.

The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.

Q7: How does warranty work?

A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping
