P10mm SMD3528 Outdoor Perimeter Led Display 6000 Nits High Brightness
  • P10mm SMD3528 Outdoor Perimeter Led Display 6000 Nits High Brightness
  • P10mm SMD3528 Outdoor Perimeter Led Display 6000 Nits High Brightness
  • P10mm SMD3528 Outdoor Perimeter Led Display 6000 Nits High Brightness
  • P10mm SMD3528 Outdoor Perimeter Led Display 6000 Nits High Brightness
  • P10mm SMD3528 Outdoor Perimeter Led Display 6000 Nits High Brightness

P10mm SMD3528 Outdoor Perimeter Led Display 6000 Nits High Brightness

Place of Origin China
Brand Name TBC LED
Certification FCC, CE, ROHS
Model Number P10
Product Details
Type:
Outdoor Football Stadium LED Perimeter
Pixel Pitch:
P10mm
Cabinet Size:
960x960mm
Service:
Rear Service
Weight:
35kg
LED Type:
High Brightness SMD3528
Highlight:

P10 outdoor perimeter led display

,

SMD3528 led perimeter display

,

High Brightness outdoor perimeter led display

Product Description

SMD3528 P10 Outdoor LED Display 6000nits High Brightness LED Screen



Outdoor P10mm Perimeter LED Screen Cricket Stadium 6000nits High Brightness



Outdoor P10mm LED Perimeter Aluminum Cabinet 6000nits High Brightness 3840Hz Refresh Rate



Specification Of Indoor Stadium LED Perimeter



Product Unit Parameters

Parameters

Mode P10mm
LEDs 1R1G1B
LED type SMD3528
Pixel pitch 10mm
Unit size W960×H960mm
Unit resolution 96×96 dots
Resolution 4,096dots/㎡
Unit direction Vertical Horizontal
Brightness ≥6000nit
Weight 32KG/㎡
Max consumption 500W/㎡
Adv consumption 230W/㎡
Viewing angle H120°/V120°
Protection level IP65
Thickness 100mm

Heat dissipation



Convective heat dissipation
Power supply Power supply with PFC
Installation Fast install
Service Back
Control mode steady state
Color temperature 3200-9300K
Refresh rate 60Hz
Working temperature -40℃ to 70℃
Storage temperature -55℃ to 120℃
Life time ≥100,000 hours
Input voltage AC110-220V
Grey grade 16bit





Feature Of Outdoor Stadium LED Perimeter



TBCLED outdoor stadium LED perimeter features:
1. Strong stability, using high-quality components and precise processing technology, effectively reducing dead light rate. The power signal dual backup system ensures long-term stable operation and supports uninterrupted operation for 7 * 24 hours.
2. Low brightness and high gray, even when the brightness drops to 20%, it can still present a perfect grayscale performance, and the display consistency is very good. Under low brightness, the grayscale performance of the display screen is almost perfect, with a higher sense of hierarchy and brightness compared to traditional displays.
3. High refresh rate, HD high-definition camera captures images without stripes.
4. Good consistency, high-strength structural fine-tuning technology, achieving seamless splicing of the entire screen. By fine-tuning, eliminate bright and dark lines. Point by point correction technology, ensuring consistency and uniformity in brightness and chromaticity across the entire screen.
5. Ultra wide viewing angle, the LED screen has a viewing angle of 160 °, and the images from all angles are uniform, clear, and natural.
6. Low reflectivity, using black matte lights and corrugated light absorbing masks, the reflection is small in bright light environments, and the image is still clear and visible.
7. High contrast, using high-quality black lights and ripple absorbing sub black masks, the image is clear and sharp, with bright and vibrant colors.



Quick detail Of Outdoor Stadium LED Perimeter



1, Pixel Pitch: 10mm
2, SMD3528 LED, high brightness 6000nits and high refresh rate
3, Greyscale: 16bits
4, Cabinet size: 960x960mm Die Cast Aluminum
5, Recommended Viewing Distance: 10-16m.

6, Cabinet Material: Die Cast Aluminum Cabinet, 32kg Weight with adjustable bracket

7, Refresh Rate: 3840Hz

8, Player protection: Soft cushion on top of cabinet

9, Quality Certificate:CE, RoHS,FCC, ETL

10, Brightness:>6000cd/sqm

11, Quick Installation: Yes, fast side lock for quick assembly and disassembly



Description Of Outdoor Football Stadium LED Perimeter



TBC LED outdoor football stadium led perimeter features are:

1, Advanced LED SMD3528, high brightness under bright sunlight, highly visible

2, Lightweight die cast aluminum cabinet, quick install and easy to handle for transportation

3, High refresh rate up to 3840Hz, good for live broadcasting

4, Adjustable angle bracket, allow customer to change how audience can see the led

5, Soft cushion on top for maximum player protection



Application Of Outdoor Stadium LED Perimeter



Product features.



1. Single box with its own power and signal work indicator, convenient to quickly diagnose where the fault lies, so as to quickly repair.

2. Light box, thin screen body, high flatness, easy to carry, low transportation cost.

3. Quick locking and positioning pins for quick installation and disassembly.

4. For the format, the display mode can be programmed by users at will; it can display text, pictures, charts, images, animations and video information; and the amount of information displayed is not limited.

5. In different batches of customized products, LED boxes with the same specifications are calibrated to the same brightness and color.

6. Large viewing angle, uniform color, high brightness, specifically for stage performances to create LED stage background screen.

7. Medium and high-end configuration, stable performance, good flatness, seamless splicing.

8. The box adopts ultra-thin super design, beautiful appearance, easy to install, can be made into any shape according to the user's needs, assembly and disassembly, easy maintenance.

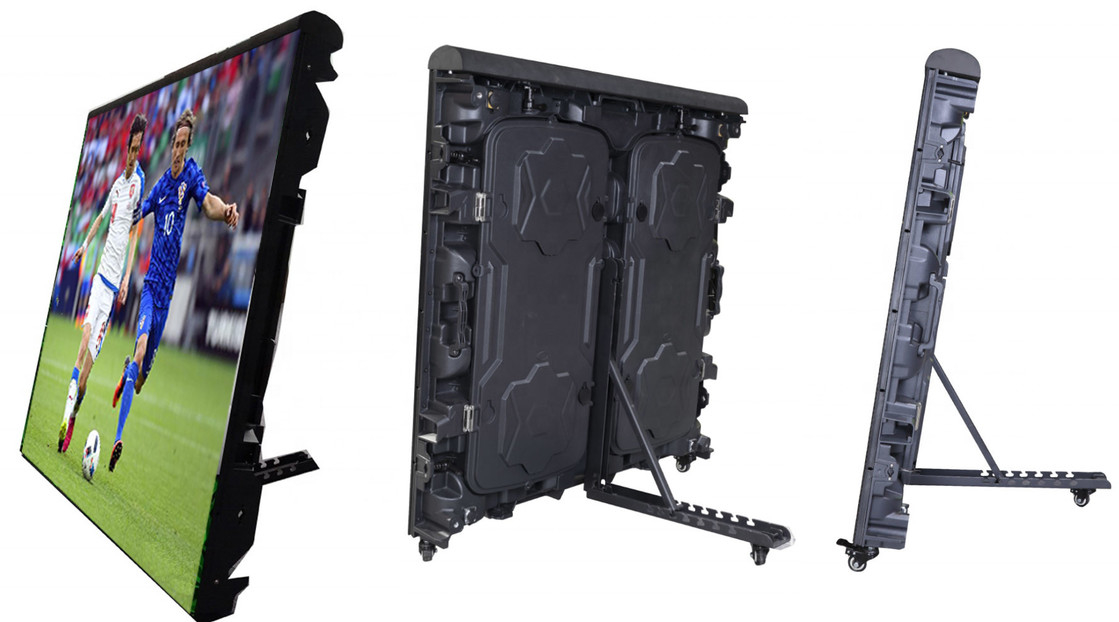

outdoor p10 led perimeter



P10mm SMD3528 Outdoor Perimeter Led Display 6000 Nits High Brightness 1P10mm SMD3528 Outdoor Perimeter Led Display 6000 Nits High Brightness 2





Our Services



1. 10 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request



FAQ



Q1. How does the service work?

A: We have experienced Engineers who worked in the industry for 15 years and able to communicate with fluent English. They can remotely provide technical support via video conference or teamviewer or go to the site for the guidance.

Q2. What installation options do we have?

A: Wall mounting with metal structures.

Q3. Do you have any MOQ limit for led screen order?

A: Low MOQ, modules or complete screen order are all welcome.

Q4. What's the shipping method?

A: Air freight, sea and train transport according to different region.

Q5. What's the payment method?

A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.

Q6. How do you control the production quality?

A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.

The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.

Q7: How does warranty work?

A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping
