Transparent LED Display
>
|
|
| Place of Origin | China |
| Brand Name | TBC LED |
| Certification | FCC, CE, ROHS |
| Model Number | P10 |
Features
1. Ultra-Thin
Screen weight is light, no pressure on the glass, thickness about 4mm, weight 3-6kg/ sqm
2. Transparent
The structure is extremely simple, high permeability,
does not affect the glass curtain wall lighting, permeability up to 85%
3, Easy to install
directly attached to the glass surface, and then the signal, power can be connected
4. Save costs
Product installation does not require additional steel frame structure,
does not need to change the appearance of the auxiliary building,
effectively reduce transportation and installation costs
5.Large viewing Angle
Up and down left and right field of view up to 140 degrees, viewing without dead corners,
no color bias, the image is always perfect and seamless
Pictures
Outdoor viewing effect

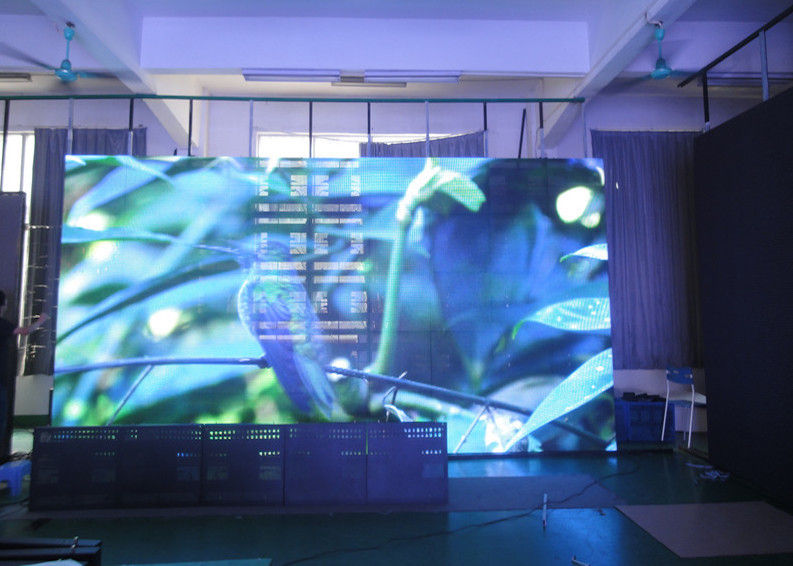

Indoor viewing effect
Parameters
|
Project |
Unit |
parameter |
parameter |
parameter |
parameter |
|
Product No |
|
DM4/8 |
DM6.5 |
D10 |
D20 |
|
light source model |
SMD |
2121 |
2121 |
2121 |
2121 |
|
Density |
dot/m2 |
31250 |
23668 |
10000 |
2500 |
|
Module Size |
mm |
960(H)X256(W) |
962(H)X208(W) |
960(H)X320(W) |
960(H)X320(W) |
|
Screen compositon |
High transparency,high temperature resistance,flame retardantPC |
||||
|
Weight |
kg/m2 |
6 |
6 |
6 |
6 |
|
Permeability |
|
|
|
|
|
|
Brightness |
cd/m2 |
≥4000 |
≥5000 |
≥5000 |
≥3000 |
|
Refresh |
Hz |
|
|
|
|
|
Scan |
|
stati |
stati |
stati |
stati |
|
Maximum power |
W/m2 |
|
|
|
|
|
average power |
W/m2 |
300 |
300 |
200 |
200 |
|
installation method |
|
|
|
|
|
|
maintenance method |
Pre/Post Maintenance |
||||
|
Brightness Level |
|
256 |
|||
| Operating Voltage | DC5V | ||||
|
gray scale |
bit |
12- 16 |
|||
|
IP |
IP |
IP30 |
|||
|
Viewing angle |
Degree |
Horizontal≥150度, Vertical ≥ 150 |
|||
|
Input voltage |
|
degreesAC95V~240V |
|||
|
Operating temperature |
°C |
-20~65 |
|||
|
Working humidity |
|
10% ~90RH |
|||
|
service life |
1 00000 hours |
||||
