Curved LED Screen
>
|
|
| Place of Origin | China |
| Brand Name | TBC LED |
| Certification | FCC, CE, ROHS |
| Model Number | P3 |
3840 High Refresh Rate P3mm Curved LED Display
LED soft screen with 360 degrees arbitrary bending characteristics. Compared with indoor fixed LED display and outdoor fixed LED display, the flexible LED display can be rolled, bent and twisted in any design, and the LED display can be made in any shape according to demand.

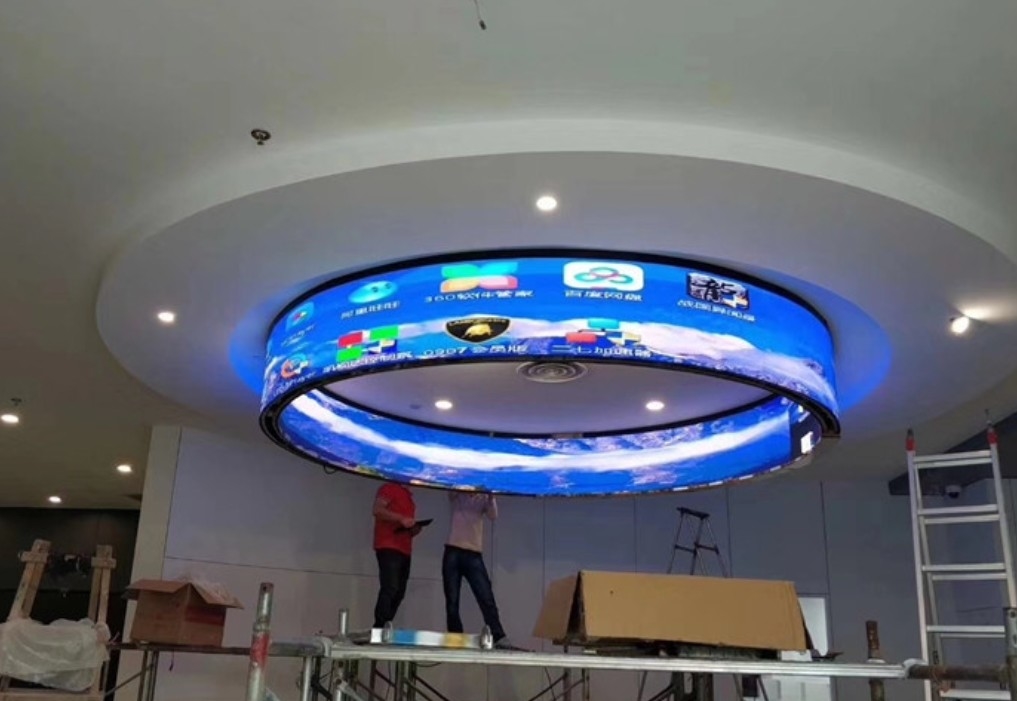

LED soft screen using flexible pcb circuit board, flexible silicone bottom kit, can be arbitrarily rolled, can be used as a cylindrical screen, ring screen, wave screen, ribbon screen, arc screen, time tunnel screen and other creative LED display
Advantages
Strong adaptability
Lateral and longitudinal bending deformation installation, even complex installation environment can present a perfect picture; 2, simple
Maintenance
Using the original LED embedded strip structure, replace a single lamp strip only need to screw 3 nuts
High protection level
Protection level up to IP65, not afraid of heavy rain, thunderstorms, can be assured in the outdoor environment
Light
Weight is only about 10kg/㎡, one person can easily install and handle products, saving installation time and installation costs
Transparent
The pixel strip structure design, so that the product permeability can reach 60%, the wind resistance is very low, the highest can resist 12 wind, can be assured in strong weather use
Thin
Thickness is only about 10mm, occupy a small space, save stage space and transportation box space
Fast plug
Plug selection of professional aviation plug, safe and reliable, with not less than IP65 high protection level, can be quickly disassembled.
Applications
Large hotels
Flexible LED display can play a decorative hotel effect. In terms of function, it can be used as advertising display, LED large clock screen, LED interest rate screen and other applications. Hotels can also promote their own special products and services to attract more customers. The application of flexible LED display can place the world clock on the LED cylindrical screen, and the clock is all-round and accurate.
Commercial supermarket
In general, large shopping malls will have large building bearing beams, they are monotonous, occupy space and waste space. Flexible LED display is used in these aspects, while addressing the impact of the pillar, it can achieve a variety of commercial promotional purposes, such as discount promotions, discount promotions and new product launches.
Entertainment venues
Entertainment places pay more attention to the cooperation of sound, light and shadow effects, flexible LED display can be made according to the shape of LED bar screen, wavy LED screen, fan LED display, water shaped LED floor tile screen and other products, make full use of the site at the same time, the sound, light, shadow and other combination display more tremor effect.
Parameters
| XT1.25 | XT 1.875 | XT 2 | XT 3 | |
| Pixel Pitch | 1.25mm | 1.875mm | 2mm | 3mm |
| Pixel Configuration | SMD1010 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Density | 64,000 pixels/m2 | 284,444 pixels/m2 | 250,000 pixels/m2 | 111,111 pixels/m2 |
| Module Dimensions(W x H) (mm) | 240 x 120 | 240 x 120 | 240 x 120 | 240 x 120 |
| Module Resolution | 192x96 | 128 x 64 | 120 x 60 | 80 x 40 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per module | 400g | |||
| Digital Processing | 16bit | |||
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >600 nits | >750 nits | >750 nits | >750 nits |
| Refresh Rate | >3,840 Hz | >3,840 -7680Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front | Front |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/48 Scan | 1/32 Scan | 1/30 Scan | 1/20 Scan |
