P1.9mm HD LED Display
  • P1.9mm HD LED Display
  • P1.9mm HD LED Display
  • P1.9mm HD LED Display
  • P1.9mm HD LED Display
P1.9mm HD LED Display

P1.9mm HD LED Display

Place of Origin China
Brand Name TBC
Certification CE-EMC, CE-LVD, RoHS, ETL, FCC
Model Number F1.9
Product Details
Pixel Pitch:
1.9mm
Size:
1 Feet By 1 Feet
Contrast:
3000:1
Dimension:
Customizable
Thickness:
40mm
System:
NOVA Star
Highlight:

P1.9mm HD LED Display

,

3840Hz HD LED Display

,

P1.9mm HD LED Screen

Product Description

P1.9mm HD LED Display



P1.9mm HD LED Display Indoor Flexible Soft Module Integrated Power Signal Cable



4K Video Quality P1.9mm Indoor Flexible Soft Module Led High Refresh 3840Hz Video Screen

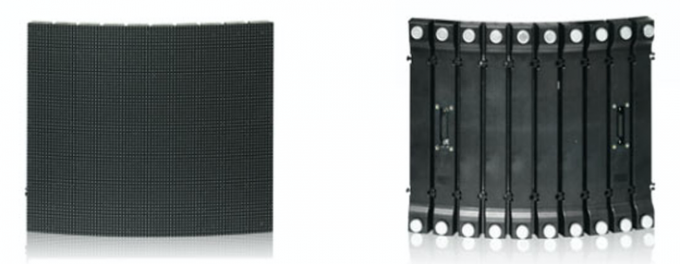

FLEXIBLE MODULE

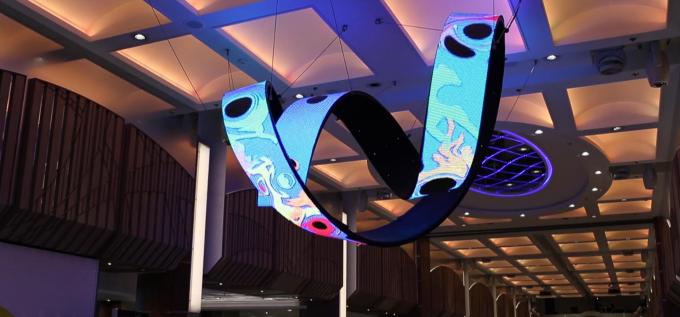

Is compatible for concave, convex, round, S shape led screen



Features and Advantages:



INNOVATIVE DESIGN

Varies kind of shape are possible to be made from concave, convex, and S shape led screen etc
Flexible Module with Housing in Segment
Free limits to your design



Parameters

Configuration SMD1515
Pixel Pitch 1.9mm
Module Size(mm) 304.8 x 304.8mm(1ft*1ft)
Module Resolution (pixels) 160 x 160 pixels
Module Weight 1.1kg
Color Depth 12-16 bit
Colors 4096-65536
Refresh Rate(Hz) ≥1920 Hz
Scan Mode 1/32
Brightness 800 nits
Viewing Distance (mm) ≥ 1.9mm
Viewing Angle(°) 110°
Input Voltage(V) 100-240 V/ 50-60 Hz
Max Power Consumption 618w/sqm
Ave Power Consumption 206w/sqm
Temperature -20 ℃/+50℃ (working)
‐40 ℃/ +60℃ (storage) ‐40 ℃/ +60℃ (storage)
IP Level IP 40 / IP 21
Humidity 10%~60% (working)
10%~90% (storage) 10%~90% (storage)
Lifespan(hours) 100000
Installation Way Fix
LED Kinglight/Nationstar
IC ICN2053
Control Box

one control 6pcs modules



P1.9mm HD LED Display 0



MAGNET-ASSISTED ASSEMBLY

Tiles made from magnesium, and is front accessible



POWER AND DATA COMBINED INPUT

One input combined power and data, save time for assembly and also enable the stability

P1.9mm HD LED Display 1

INDEPENDENT BOX

Independent control box could be fixed separately from the structure and module



CABLING WAY

One control box has 3 output, each output control 2 module, 6 on 1 control box



P1.9mm HD LED Display 2

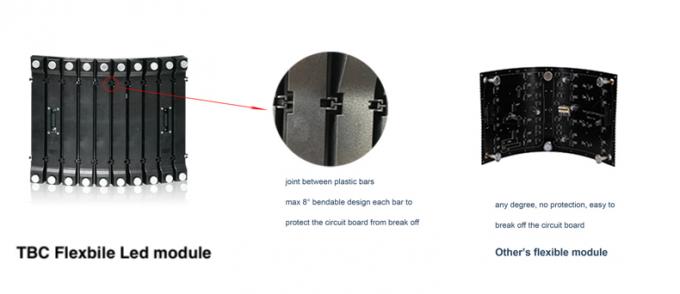

NTELLIGENT DESIGN

The degree between each segement is 8°, enable maximum 80 degree in convex and concave per module
The PCB and LED will not be damaged until housing was been broken apart
Less possility to be damaged during installation and maintenance



P1.9mm HD LED Display 3
