| Place of Origin | China |
| Brand Name | TBC |
| Certification | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number | D3.91 |

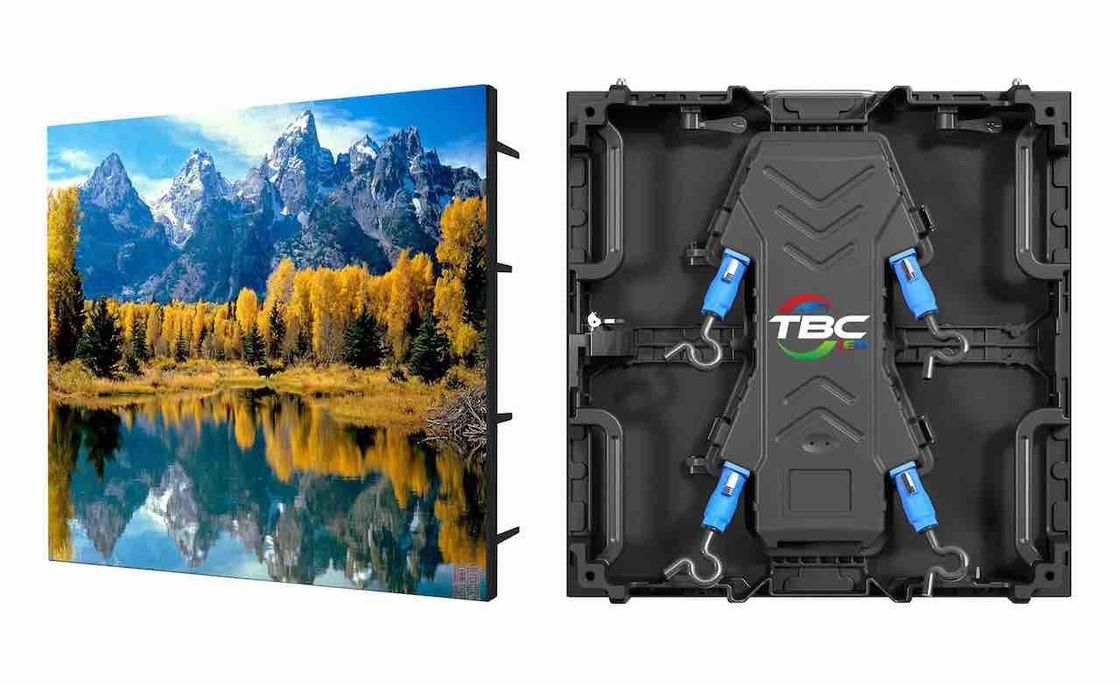

Ultra Thin 80mm Indoor Led Video Wall P3.91mm High Refresh Rate 1920Hz
One person maintenance
Ultra light weight cabinet, 8kg per cabinet, easy to use
Front maintenance design, easy maintenance.
One person can do installation and disassembly
Handle and fast lock design enable quick and convenient installation and disassembly, one person can handle it all.
One panel available for concave and convex curves
Patented high precision curving blocks support 0-10° concave curve and 0 -5°
convex curve(customized).
| Brightness | nits | 1000 | ||
| Color temperature | deg.k | 3200 ~ 9300 | ||
| Viewing angle - Horizontal | deg. | 140(+70/-70) | ||
| Viewing angle - Vertical | deg. | 140(+70/-70) | ||
| Cabinet weight | kg | 8 | ||
| Cabinet width | mm | 500 | ||
| Cabinet height | mm | 500 | ||
| Cabinet depth | mm | 80 | ||
| Cabinet area | sq. m. | 0.25 | ||
| Cabinet material | Aluminum | |||
| Aspect ratio | 1:1 | |||
| Ingress protection (Front/Rear) | IP | IP40/IP20 | ||
| Operating temperature range | deg. C | 0 to 40 | ||
| Operating humidity range | HR | 10％ to 90％ | ||
| Pixel type and configuration | R/G/B | SMD 3in1 | ||
| Pixel pitch | mm | 3.91 | ||
| Pixel matrix per cabinet | 128x128 | |||
| Pixels per cabinet | 16384 | |||
| Lines per meter | 256 | |||
| Pixels per sq. meter | 65536 | |||
| LEDs per sq. meter | 65536 | |||
| Recommended minimum viewing distance | m | 4 | ||
| Colours | 281trillion | |||
| Gray scale | Levels | 65536 levels per colour | ||
| Brightness control | Levels | 100 | ||
| Digital processing | bit | 16 | ||
| Frame rate | Hertz | 60 | ||
| Display refresh rate | Hertz | 1440 | ||
| Input voltage | VAC | 110/240 | ||
| Input power frequency | Hertz | 50/60 | ||
| Input power (max/avg) | Watts per sq.m | 600/210 | ||
| MTBF | Hours | ≥10000 | ||
| Lifetime (50%Brightness) | Hours | ≥100000 | ||
| Module brightness uniformity | ＜5％ | |||
| Blind spot rate | ＜0.0001 | |||
| Earth leakage current | mA | ＜2 | ||
| Red wavelength | nm | 623 | ||
| Green wavelength | nm | 525 | ||
| Blue wavelength | nm | 470 | ||
| Panel input format (with video processor) | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV | |||
| Data interconnection | CAT6 cable/Fiber | |||
| Operating system | Windows(XP/Vista/7/8/10) | |||
| Control distance | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. | |||
