| Place of Origin | China |
| Brand Name | TBC |
| Certification | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number | E10 |
Russia Outdoor Advertising LED Display Aluminum Based Module UV Proof Fire Proof

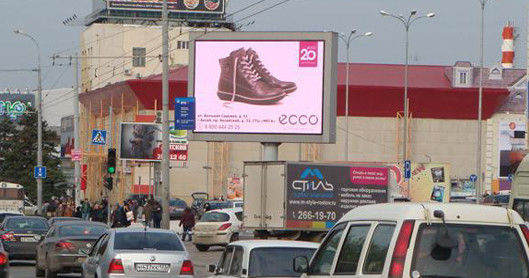

TBC LED has achieved another great project in overseas market, the project is 39.33sqm, located on one of the main street in Moscow for advertising use
Download S series brochure.pdf
1. Front service module, 5 seconds to take module off, easy maintenance;
2. Aluminum based module, fire proof, UV proof and dust proof;
3. Anti-UV module mask, Anti-Oxidation module frame with protection from deformation;
4. Aircraft-grade connectors of the power and signal to ensure stable connection and high reliability;
5. Ip65 protection grade, durable cabinet design make the LED screen durable in all weather outdoor environments.
| Brightness | nits | 6000-7000nits | ||
| Color temperature | deg.k | 3200 ~ 9300 | ||
| Viewing angle - Horizontal | deg. | 140(+70/-70) | ||
| Viewing angle - Vertical | deg. | 140(+70/-70) | ||
| Cabinet weight | kg | 48 | ||
| Cabinet width | mm | 960 | ||
| Cabinet height | mm | 960 | ||
| Cabinet depth | mm | 100 | ||
| Cabinet area | sq. m. | 0.92 | ||
| Cabinet material | Cold Steel | |||
| Aspect ratio | 1:1 | |||
| Ingress protection (Front/Rear) | IP | IP68 | ||
| Operating temperature range | deg. C | - 20 to 50 | ||
| Operating humidity range | HR | 10％ to 90％ | ||
| Pixel type and configuration | R/G/B | SMD 3in1 | ||
| Pixel pitch | mm | 10. | ||
| Pixel matrix per cabinet | 96x96 | |||
| Pixels per cabinet | 9216 | |||
| Lines per meter | 100 | |||
| Pixels per sq. meter | 10000 | |||
| LEDs per sq. meter | 10000 | |||
| Recommended minimum viewing distance | m | 10 | ||
| Colours | 281trillion | |||
| Gray scale | Levels | 65536 levels per colour | ||
| Brightness control | Levels | 100 | ||
| Digital processing | bit | 16 | ||
| Frame rate | Hertz | 60 | ||
| Display refresh rate | Hertz | 1920 | ||
| Input voltage | VAC | 110/240 | ||
| Input power frequency | Hertz | 50/60 | ||
| Input power (max/avg) | Watts per sq.m | 500/200 | ||
| MTBF | Hours | ≥10000 | ||
| Lifetime (50%Brightness) | Hours | ≥100000 | ||
| Module brightness uniformity | ＜5％ | |||
| Blind spot rate | ＜0.0001 | |||
| Earth leakage current | mA | ＜2 | ||
| Red wavelength | nm | 623 | ||
| Green wavelength | nm | 525 | ||
| Blue wavelength | nm | 470 | ||
| Panel input format (with video processor) | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV | |||
| Data interconnection | CAT6 cable/Fiber | |||
| Operating system | Windows(XP/Vista/7/8/10) | |||
| Control distance | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. | |||
