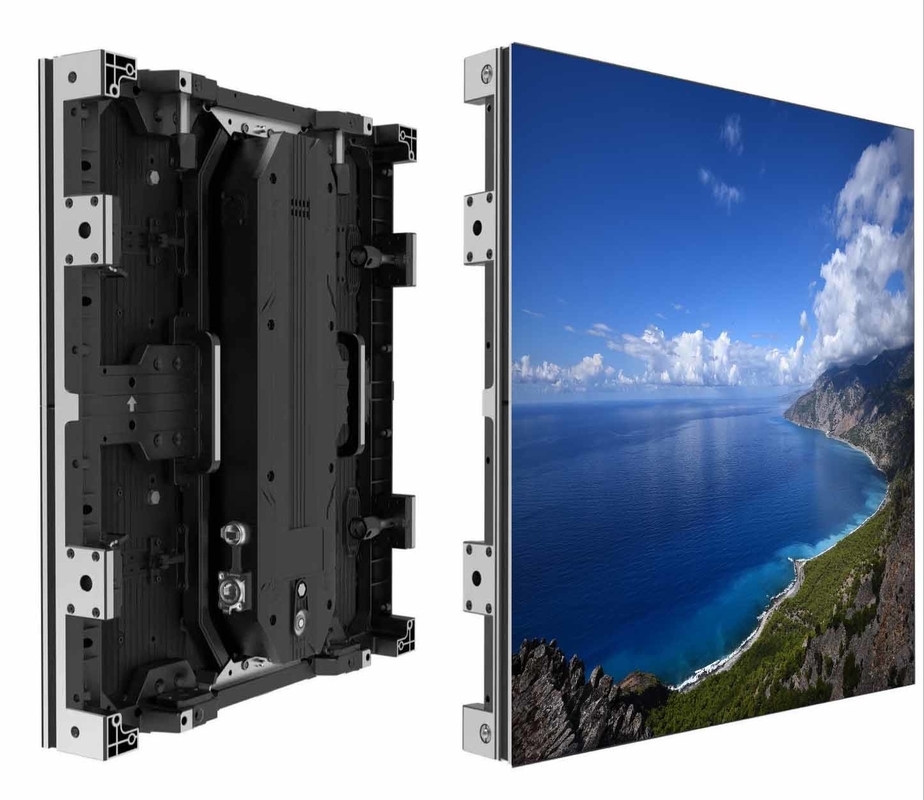

3840Hz Small Pitch LED Display P1.875mm Outdoor 4000nits High Brightness

Place of Origin China
Brand Name TBC LED
Certification FCC, CE, ROHS
Model Number P1.875
Product Details
Type:
Fine Pixel Pitch LED Display
Pixel Pitch:
P1.875mm
Cabinet Size:
480x540mm
Service:
Front Service
Weight:
8kg
Refresh Rate:
3840Hz
High Light:

Small Pitch LED Display P1.875mm

,

Fine Pixel Small Pitch LED Display

,

4000nits Fine Pixel Pitch LED Display

Product Description

Outdoor Small Pitch LED Display P1.875mm 4000nits High Brightness 3840Hz



Application Of Outdoor P1.875mm 4000nits brightness  LED Display

With the development of the times and the improvement of people's living standards, people put forward higher requirements for the display effect of display devices. The LED display screen with clear image and high color reproduction is favored by people nowadays, and it is also the development trend of LED display screen in the future. In the field of LED display, small pitch LED display is shouldering such a mission, and after recent years of technological development, it is spreading in the market with extremely rapid momentum. In 2016, the small pitch LED display market was extremely hot, becoming the most dazzling star in the LED display market. Its strong momentum further demonstrates the huge demand for high pixel level displays in the market. In this sense, the outdoor market traditionally dominated by in-line LED displays will also be the leader in the small pitch LED display market.

With the launch of TBC LED outdoor 1212 RGB SMD products, it marks that outdoor small pitch displays have really entered the P1. X era (theoretically, the minimum outdoor point spacing can reach P1.5). This product is mainly used in outdoor small pitch displays such as medium and high-end advertising light boxes, signboards, stage backgrounds, commercial exhibitions, etc. TBC LED outdoor 1212 RGB products have a full black design and provide a common cathode and common anode packaging type; In terms of quality reliability, it can be guaranteed by the humidity sensitivity level test MSL>1000 cycles, IPX6 moisture proof design, and a three-year warranty.





Quick detail Of Outdoor P1.875mm 4000nits brightness LED Display

1, Pixel Pitch: 1.56mm
2, SMD1010 LED, high contrast and high refresh rate
3, Greyscale: 16bits
4, Cabinet size: 480x540mm Die Cast Aluminum
5, Recommended Viewing Distance: 1-3m.

6, Cabinet Material: Die Cast Aluminum Cabinet, 8kg Light Weight

7, Refresh Rate: 3840Hz

8, Quality Certificate:CE, RoHS,FCC, ETL

9, Brightness:>4000cd/sqm

10, Quick Installation: Yes, fast side lock for quick assembly and disassembly



Specification Of Outdoor P1.875mm 4000nits brightness LED Display

Product Unit Parameters

Parameters

Mode P1.56mm
LEDs 1R1G1B
LED type SMD1010
Pixel pitch 1.56mm
Unit size W480×H540mm
Unit resolution 312×351 dots
Resolution 409,600dots/㎡
Unit direction Vertical Horizontal
Brightness ≥4000nit
Weight 8KG/㎡
Max consumption 500W/㎡
Adv consumption 230W/㎡
Viewing angle H120°/V120°
Protection level IP65
Thickness 80mm

Heat dissipation



Convective heat dissipation
Power supply Power supply with PFC
Installation Fast install
Service Front
Control mode steady state
Color temperature 3200-9300K
Refresh rate 60Hz
Working temperature -40℃ to 70℃
Storage temperature -55℃ to 120℃
Life time ≥100,000 hours
Input voltage AC110-220V
Grey grade 16bit





Features Of Outdoor P1.875mm 4000nits brightness LED Display

1. Unit display case with 16:9 design, HD display point to point, no distortion and no compression of images.
2. Full front maintenance design, small installation space.
3. Ultra-thin design of the screen body, the thickness of the whole box is less than 40mm.
4. Secondary power supply design, the box power supply for low voltage, the use of high-efficiency module power supply, small heat generation.
5. Box power supply without cascade output, reducing the risk of failure of the connector.
6. Module intelligent detection (single-point detection, fault warning, temperature detection, etc.) and data storage functions (calibration data storage, production data storage).
7. Module using magnesium alloy die-casting bottom case, good flatness, bottom case and PCB and IC close together, good heat dissipation.
double backup design for control card and power supply, which can be applied to various demanding places.
8. Module and HUB adopt board-to-board professional connectors for more reliable performance.
system card can realize front and back maintenance.
9. The signal connection between the boxes adopts hidden HDMI docking, with more reliable performance and neat and clean rear part of the screen assembled.
10. High gray scale, high refresh, high contrast, low brightness design.

outdoor p1.875mm hd led display

outdoor p1.875mm hd led display

outdoor p1.875mm hd led display





Our Services



1. 10 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request



FAQ



Q1. How does the service work?

A: We have experienced Engineers who worked in the industry for 15 years and able to communicate with fluent English. They can remotely provide technical support via video conference or teamviewer or go to the site for the guidance.

Q2. What installation options do we have?

A: Wall mounting with metal structures.

Q3. Do you have any MOQ limit for led screen order?

A: Low MOQ, modules or complete screen order are all welcome.

Q4. What's the shipping method?

A: Air freight, sea and train transport according to different region.

Q5. What's the payment method?

A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.

Q6. How do you control the production quality?

A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.

The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.

Q7: How does warranty work?

A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping
