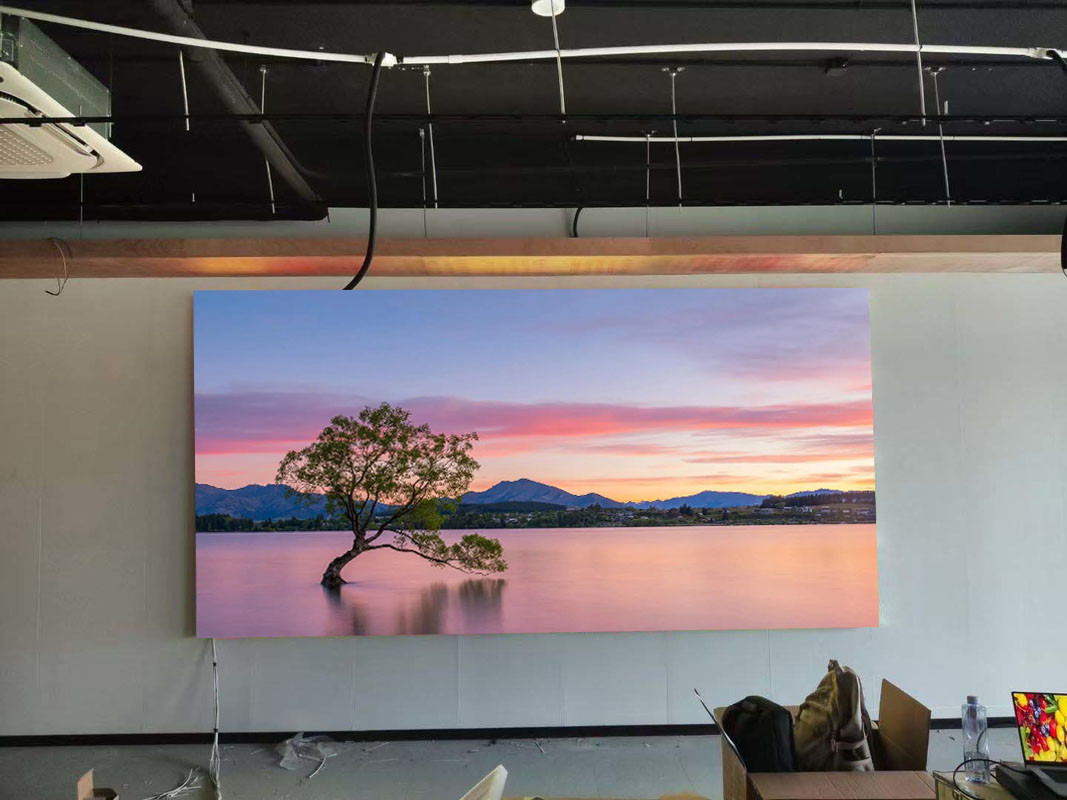

Refresh Rate 3840Hz Indoor LED Video Wall Display Wall Mount Installation
High Refresh Rate Indoor LED Display Steel Cabinet Wall Mount Installation
Indoor P3mm 960x960mm Steel Cabinet Wall Mount Installation with 3840Hz Refresh Rate
Quick detail Of Indoor Fixed LED Screen
1, Pixel Pitch: 2.5mm, 3mm, 4mm
2, Nation Star or Kinglight SMD LEDs, high contrast and high reliability
3, Greyscale: 16bits
4, Cabinet size: 768x768mm or 960x960mm Steel Wall Mount Cabinet
5, Service type: Magnetic front service
6, PSU: MEANWELL or G energy brand
7, Refresh Rate: 1920-3840Hz
8, Ingress Rate: IP43 indoor use and magnetic front service
9, Quality Certificate:CE, RoHS,FCC, ETL
10, Brightness:>800-1000cd/sqm
Specification Of Indoor Fixed LED Screen
| E 2.5 | E 3 | E 4 | E4 | |
| Pixel Pitch | 2.5mm | 3mm | 4mm | 4mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 160,000 pixels/m2 | 111,111 pixels/m2 | 62,500 pixels/m2 | 62,500 pixels/m2 |
| Module Dimensions(W x H) (mm) | 320 x 160 | 192 x 192 | 256 x 128 | 320X160 |
| Panel Dimensions (mm) |
960 x 960 x 100 640 x 480 x 100 |
960 x 960 x 100
|
1024 x 1024 x 100
|
960x960x100 |
| Module Resolution | 168 x 84 | 64 x 64 | 64 x 32 | 80x40 |
| Cabinet Resolution | 384 x 384 | 320 x 320 | 256 x 256 | 240x240 |
| Panel Material | Steel | Steel | Steel | Steel |
| Weight per Cabinet | 26kg | 26kg | 26kg | 26kg |
| Digital Processing | 16bit | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000:1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel | 650 W /panel |
| Brightness | >8,00 nits | >8,00 nits | >8,00 nits | >7,00 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front | Front |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan | 1/20 Scan |
Description Of Indoor Fixed LED Screen
TBC LED E Series indoor fixed led screen include P2.5mm, 3mm and P4mm Features are:
1, Steel wall mount cabinet, can be installed to the wall directly
2, High refresh rate 3840Hz adjustable
3, Magnetic modules, Front and Rear Maintenance via Magnets
4, NOVA Star or Colorlight system free to choose
5, Easy to use and installation
Feature Of Indoor Fixed LED Video Wall
1. Golden ratio 16:9
Minimum spacing box resolution 640 * 360
2. Ultra-thin and ultra-light box, more efficient installation and maintenance
As thin as 44mm, weight only 20kg/m2
3. Front maintenance, space-saving
Can be installed against the wall, no need to set aside maintenance channels
4. Module comes with calibration data storage, automatically import data when replaced
5. Covering the whole scene of commercial display and wider application
Advantages Of Indoor Fixed LED Video Wall
Uniform color, natural picture:
Broadcast-grade color gamut, color temperature and brightness intelligent adjustable, uniform color, high contrast, beautiful natural picture; anti-UV, anti-deformation module kit, to protect the screen body flat and not deformed.
Wide viewing angle:
Up, down, left and right 160 degree viewing angle, broadcast-level color gamut, color temperature and brightness intelligent adjustable, more suitable for long time viewing. Box for the command and control center display screen features planned into 16:9 ratio, easy to achieve 4:3 or 16:9 ratio of the screen.
Energy saving ≥ 36%:
Using the industry's top low-power ultra-bright LED lights, energy saving ≥ 30%, with industrial-grade high-power power switch core patented technology, the overall energy saving ≥ 36%, energy saving and environmental protection.
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the semi auto corner protector work?
A: Gently push the button, the corner protector will release and cover the corner area.
A: Either stacking on ground or haning is supported.
A: Low MOQ, modules or complete screen order are all welcome.
A: Air freight, sea and train transport according to different region.
A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.
A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.
A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping
