P2.9 Indoor LED Poster Display with 800nit Brightness 33mm Ultra-Slim Cabinet and Front Access Service
  • P2.9 Indoor LED Poster Display with 800nit Brightness 33mm Ultra-Slim Cabinet and Front Access Service
  • P2.9 Indoor LED Poster Display with 800nit Brightness 33mm Ultra-Slim Cabinet and Front Access Service
  • P2.9 Indoor LED Poster Display with 800nit Brightness 33mm Ultra-Slim Cabinet and Front Access Service
  • P2.9 Indoor LED Poster Display with 800nit Brightness 33mm Ultra-Slim Cabinet and Front Access Service

P2.9 Indoor LED Poster Display with 800nit Brightness 33mm Ultra-Slim Cabinet and Front Access Service

Place of Origin Guangdong, China
Brand Name TBC LED
Certification CCC, CE, RoHS, FCC, CB, TUV, IEC, BIS
Model Number P2.976
Product Details
Pixel Pitch:
P2.976
LED Type:
SMD1515
Physical Density:
112,896 Dots/sqm
Module Size:
250x250 Mm
Display Dimension:
1000x2000x33 / 750x2000x33 Mm
Overall Dimensions:
1006x2181x33 / 756x2181x33 Mm
Thickness:
33mm
Cabinet Material:
Die-Cast Aluminum
Maintenance:
Front Access Service
Highlight:

P2.9 Ultra-Slim Indoor LED Poster

,

Foldable LED Display Saves Freight

,

Die-Cast Aluminum Front Access Screen

Payment & Shipping Terms
Minimum Order Quantity
10 sqm
Price
Negotiable
Packaging Details
Free flight case with custom logo printing; plywood box also available
Delivery Time
15 working days
Payment Terms
T/T,L/C,PayPal,Western Union
Supply Ability
1000 sqm per month
Product Description
P2.9 Indoor LED Poster Display 800nit Ultra-Slim 33mm Die-Cast Aluminum Cabinet Front Access Digital Signage
Product Overview

The P2.9 Indoor LED Poster Display strikes the perfect balance between sharp image quality and smart budget control. With 112,896 dots/sqm density powered by SMD1515 LEDs at 800nit brightness, every image pops with clarity and color that grabs attention—even in well-lit indoor spaces.

The cabinet is die-cast aluminum, just 33mm thin, making it one of the slimmest and lightest LED posters in its class. Front access service means no rear clearance needed: simply pop the front panel to maintain or swap modules. Whether you outfit one store or a hundred, this display adapts effortlessly to your deployment scale and budget.

Technical Specifications
Model P2.976
LED Type SMD1515
Physical Density 112,896 dots/sqm
Screen Resolution 336x672 / 252x672 dots
Module Size 250x250 mm
Display Dimension 1000x2000x33 / 750x2000x33 mm
Overall Dimensions 1006x2181x33 / 756x2181x33 mm
Maintenance Front Access Service
Cabinet Material Die-Cast Aluminum
Brightness 800 nit
Color Temperature 5000-12000 K (Optional)
Viewing Angle 160°/160° (V/H)
Brightness/Color Uniformity ≥97%
Contrast Ratio 10000:1
Frame Frequency 50/60 Hz
Scan Mode 1/28 Scan
Gray Scale 14/16 bit (Optional)
Refresh Rate 3840 Hz
Max Power Consumption 400 W/sqm
Average Power Consumption 100-200 W/sqm
Power Voltage Range AC90-264V, 47-63Hz
Protection Level IP31
Working Temperature/Humidity -20~60°C / 10%-85%
Storage Temperature/Humidity -20~60°C / 10%-85%
Certifications CCC, CE, RoHS, FCC, CB, TUV, IEC, BIS
Warranty 2 Years
Available Sizes
Size Overall Dimensions Display Area Resolution (P2.9)
Wide 1006 x 2181 x 33 mm 1000 x 2000 mm 336 x 672 dots
Narrow 756 x 2181 x 33 mm 750 x 2000 mm 252 x 672 dots

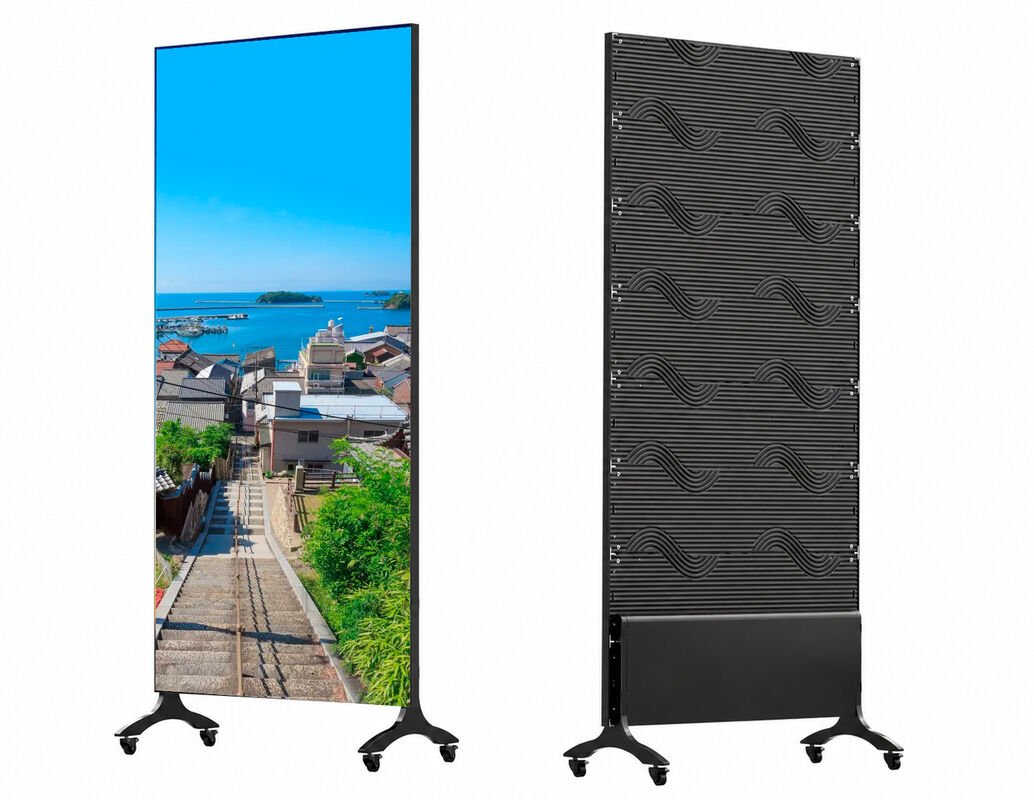

P2.9 Indoor LED Poster Display product image
Key Features
Feather-Light, Razor-Thin Cabinet

At just 33mm profile in a die-cast aluminum body, each unit is surprisingly lightweight yet rock-solid. Move it, mount it, ship it—no heavy equipment needed. The sleek frame blends into any modern interior without the bulky "tech box" look.

Foldable Design That Slashes Shipping Costs

Choose the hinged foldable frame and watch your freight bills drop. The display folds flat for compact packing, so more units fit per container. Plus, unfold it into a double-sided screen—two displays for the cost of one shipment.

Pixel Pitches for Every Budget

Fine-tune your investment. Need ultra-HD for a luxury boutique? Go finer pitch. Equipping a budget-conscious chain? Step up the pitch and save. One platform, seven pixel options—you decide the spec, we deliver the screen.

Plug In and Play—Zero Learning Curve

No PC? No problem. Load content onto a USB drive, insert it, and the display auto-plays—videos, images, everything. The intuitive app lets anyone on your team schedule content in minutes. If you can use a smartphone, you can run this screen.

Cascade up to 8 Screens at 2K Resolution

Daisy-chain up to 8 units for a seamless video wall reaching 2K. Mix the wide 1006mm and narrow 756mm cabinets for creative layouts. Perfect for storefront windows, airport concourses, or exhibition backdrops that need to turn heads.

Sleek Looks That Elevate Any Space

Ultra-narrow bezels, flush aluminum frame, clean cable management—this display looks premium from every angle. Universal castor wheels let you glide it into position silently. Even the control box is hidden in a built-in storage compartment.

LED Poster Display in use scenarios
Ideal Applications
Retail & Shopping Malls

Picture this: a customer walks past your store and the screen bursts to life with your latest collection in vivid detail. Promos, new arrivals, social proof—the P2.9's 800nit brightness cuts through ambient mall lighting, stopping shoppers mid-stride.

Hotel Lobbies & Corporate Reception

A polished welcome screen in the lobby, wayfinding for event halls, brand stories in the waiting area. The slim 33mm frame looks like it belongs in a five-star setting. Guests notice the message, not the hardware.

Trade Shows & Exhibitions

Your booth has seconds to hook a passerby. A floor-standing LED poster at 3840Hz refresh rate—flicker-free even on camera—draws a crowd and keeps them watching. Fold it up after the show, wheel it to the next event.

Restaurants, Cafes & Quick-Service Chains

Digital menu boards that stay sharp under bright ceiling lights. Push seasonal specials instantly across all locations from one phone. The USB plug-and-play mode means even shift staff can swap the daily menu—no IT ticket needed.

Airports & Transport Hubs

Flight info, gate changes, ad spots—all on one screen. The split-screen mode carves the display into independent zones: schedules on the left, brand ads on the right. Travelers get what they need; advertisers get what they paid for.

LED Poster Display installation examples
Available Configurations
Option Description
Cabinet Size 1006x2181x33mm (display 1000x2000mm) or 756x2181x33mm (display 750x2000mm)
Foldable Design Hinged foldable frame—compact for storage and shipping, unfolds into a dual-sided screen for double-sided display
Non-Foldable Design Rigid one-piece frame optimized for fixed-location permanent setups
Pixel Pitch Options P1.25 / P1.56 / P1.95 / P2.5 / P2.604 / P2.976 / P3.91—choose based on viewing distance and budget
GOB (Glue-On-Board) Protective resin coating guards LEDs against moisture, dust, static, and bumps—recommended for high-traffic public spaces
Non-GOB (Standard) Bare SMD1515 LED surface delivers maximum brightness in controlled indoor settings
Installation Methods
  • Floor Standing: Built-in universal castors with locking brakes. Roll it anywhere, lock it in place—no tools, no mounting hardware, no hassle.
  • Multi-Screen Cascade: Link up to 8 screens via RJ45 data cable. Create a synchronized 2K video wall—all units play in perfect lockstep.
  • Ceiling Suspension: Reinforced top brackets for hanging mounts in atriums, concourses, and event venues where floor space is at a premium.
